东莞市虎门镇水业公司办公楼结构设计

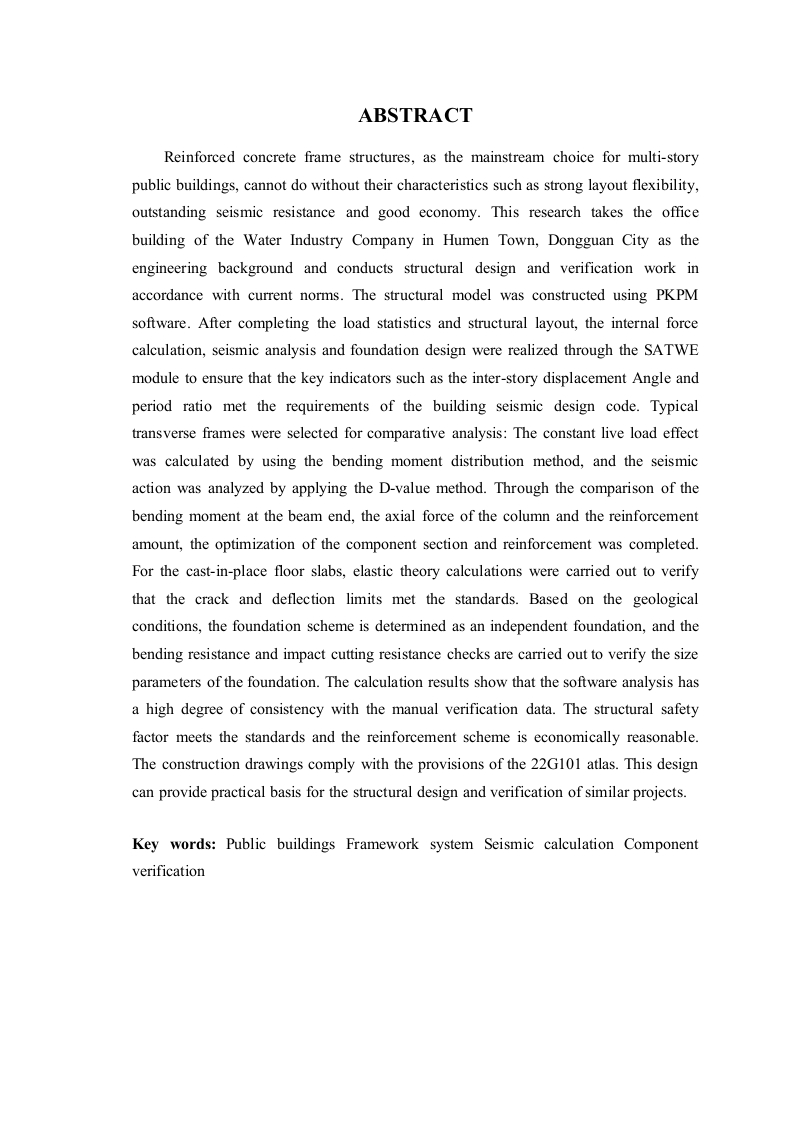

东莞市虎门镇水业公司办公楼结构设计摘要钢筋混凝土框架结构作为多层公共建筑的主流选择，离不开它布局灵活性强、抗震能力突出及经济性良好等特点。本研究以东莞市虎门镇水业公司办公楼为工程背景，依据现行规范开展结构设计与验算工作。运用PKPM软件构建结构模型，完成荷载统计与结构布置后，通过SATWE模块实现内力计算、抗震分析及基础设计，确保层间位移角、周期比等关键指标满足建筑抗震设计规范要求。选取典型横向框架开展对比分析：采用弯矩分配法计算恒活载效应，应用D值法进行地震作用分析，通过梁端弯矩、柱轴力及配筋量的比对，完成构件截面与配筋优化。针对现浇楼板，实施弹性理论计算，验证裂缝与挠度限值符合标准。结合地质条件确定基础方案为独立基础，进行抗弯及抗冲切验算，校验基础尺寸参数。计算结果表明，软件分析与手工验算数据吻合度较高，结构安全系数达标且配筋方案经济合理，施工图纸符合22G101图集规定。本设计可以为类似工程的结构设计与验证提供实践依据。关键词：公共建筑：框架体系：抗震计算；构件验算ABSTRACTReinforced concrete frame structures,as the mainstream choice for multi-storypublic buildings,cannot do without their characteristics such as strong layout flexibility,outstanding seismic resistance and good economy.This research takes the officebuilding of the Water Industry Company in Humen Town,Dongguan City as theengineering background and conducts structural design and verification work inaccordance with current norms.The structural model was constructed using PKPMsoftware.After completing the load statistics and structural layout,the internal forcecalculation,seismic analysis and foundation design were realized through the SATWEmodule to ensure that the key indicators such as the inter-story displacement Angle andperiod ratio met the requirements of the building seismic design code.Typicaltransverse frames were selected for comparative analysis:The constant live load effectwas calculated by using the bending moment distribution method,and the seismicaction was analyzed by applying the D-value method.Through the comparison of thebending moment at the beam end,the axial force of the column and the reinforcementamount,the optimization of the component section and reinforcement was completed.For the cast-in-place floor slabs,elastic theory calculations were carried out to verifythat the crack and deflection limits met the standards.Based on the geologicalconditions,the foundation scheme is determined as an independent foundation,and thebending resistance and impact cutting resistance checks are carried out to verify the sizeparameters of the foundation.The calculation results show that the software analysis hasa high degree of consistency with the manual verification data.The structural safetyfactor meets the standards and the reinforcement scheme is economically reasonable.The construction drawings comply with the provisions of the 22G101 atlas.This designcan provide practical basis for the structural design and verification of similar projects.Key words:Public buildings Framework system Seismic calculation Componentverification目录第1章引言4444444444444441.1选题目的及意义1.2设计的主要内容.2第2章东莞市虎门镇水业公司办公楼工程2.1工程概况.42.2建筑设计总说明..52.3结构选型..6第3章PKPM框架结构设计83.1软件介绍P3.2建模流程.83.3前处理参数设置….......c.93.4 SATWE计算与结果分析93.5结构设计调整与优化…10第4章框架结构设计计算114.1设计与计算依据114.2结构设计.11第5章设计过程分析145.1结果对比与分析145.2抗震构造分析14第6章总结与体会.…16参考文献…17致谢。18东莞市虎门镇水业公司办公楼结构设计成果.19第1章引言1.1选题目的及意义钢筋混凝土框架结构的设计研究在提升建筑设计的安全性和效率方面发挥着关键作用。首先，通过优化受力分析并借助科学建模，可以更精确地评估建筑在地震、强风等极端环境下的变形和破坏特征。其次，改进设计方法不仅能够提高结构性能，还能有效减少后期维护成本。最后，相关研究成果可为行业标准的更新和完善提供重要参考依据，从而推动规范的修订进程。通过科学设计，合理运用钢
