维也纳宾馆初步设计

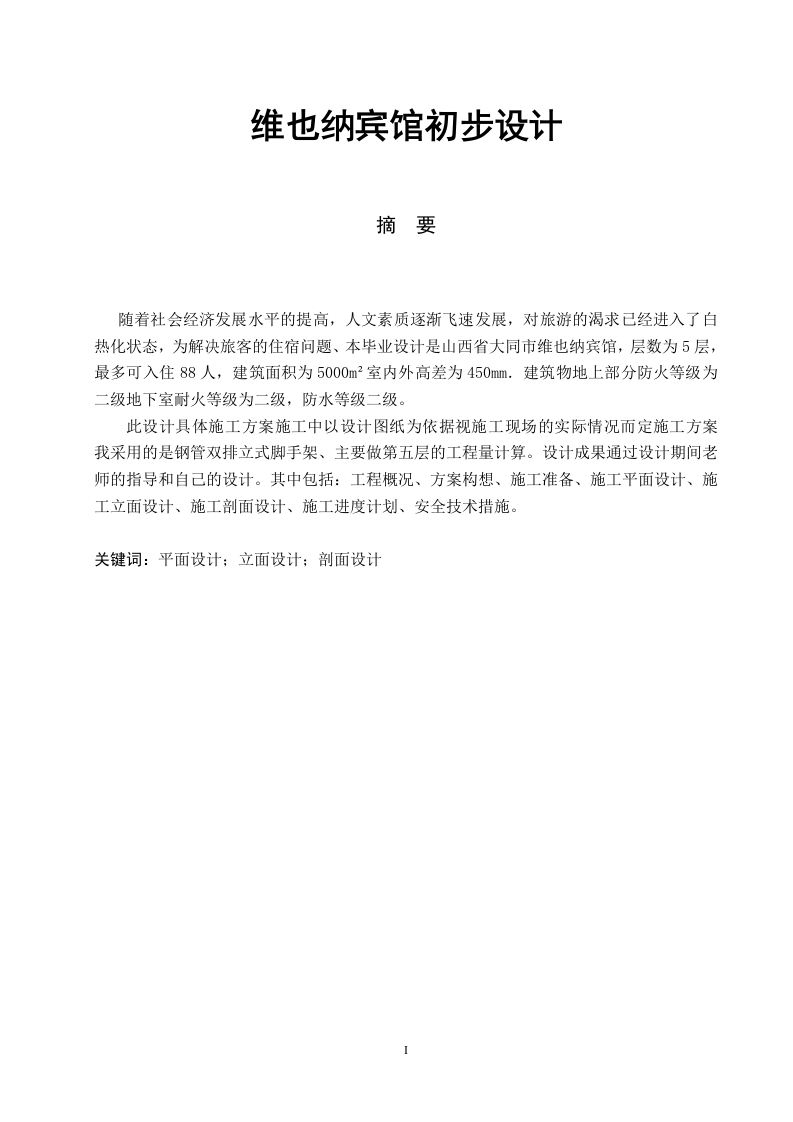

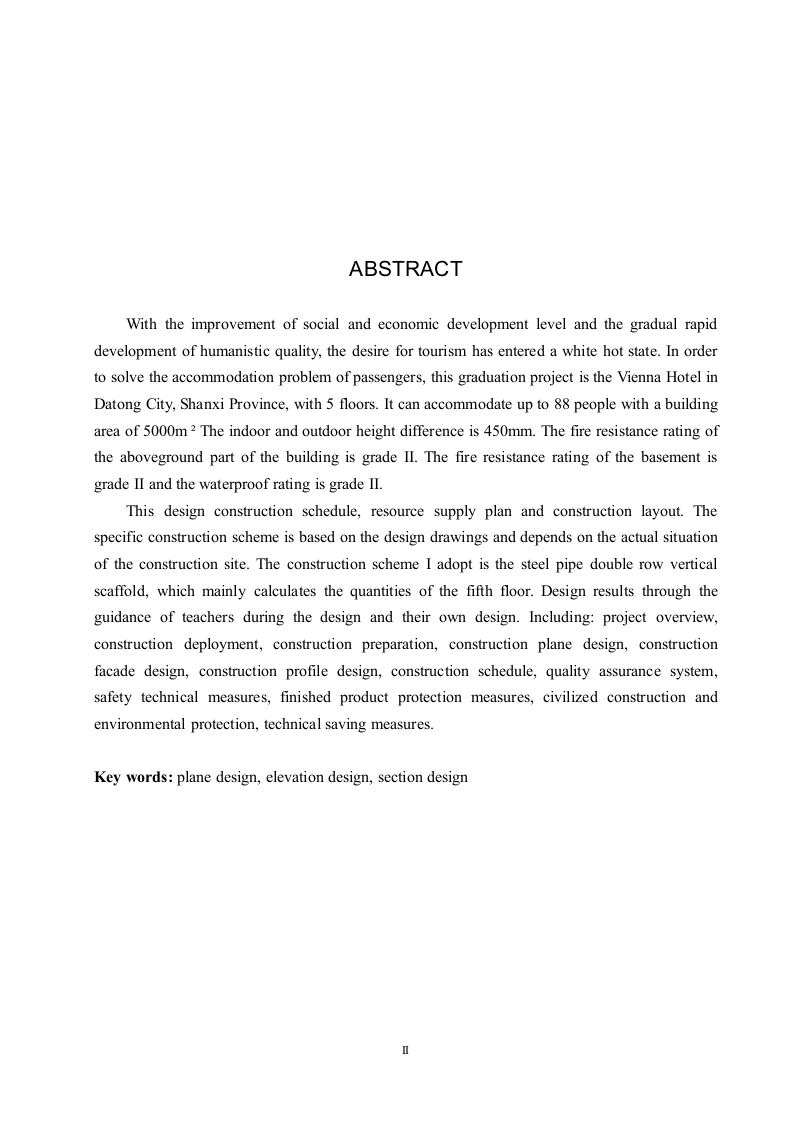

维也纳宾馆初步设计摘要随着社会经济发展水平的提高，人文素质逐渐飞速发展，对旅游的渴求已经进入了白热化状态，为解决旅客的住宿问题、本毕业设计是山西省大同市维也纳宾馆，层数为5层，最多可入住88人，建筑面积为5000m2室内外高差为450mm.建筑物地上部分防火等级为二级地下室耐火等级为二级，防水等级二级。此设计具体施工方案施工中以设计图纸为依据视施工现场的实际情况而定施工方案我采用的是钢管双排立式脚手架、主要做第五层的工程量计算。设计成果通过设计期间老师的指导和自己的设计。其中包括：工程概况、方案构想、施工准备、施工平面设计、施工立面设计、施工剖面设计、施工进度计划、安全技术措施。关键词：平面设计：立面设计：剖面设计ABSTRACTWith the improvement of social and economic development level and the gradual rapiddevelopment of humanistic quality,the desire for tourism has entered a white hot state.In orderto solve the accommodation problem of passengers,this graduation project is the Vienna Hotel inDatong City,Shanxi Province,with 5 floors.It can accommodate up to 88 people with a buildingarea of 5000m2 The indoor and outdoor height difference is 450mm.The fire resistance rating ofthe aboveground part of the building is grade II.The fire resistance rating of the basement isgradeⅡand the waterproof rating is grade IⅡ.This design construction schedule,resource supply plan and construction layout.Thespecific construction scheme is based on the design drawings and depends on the actual situationof the construction site.The construction scheme I adopt is the steel pipe double row verticalscaffold,which mainly calculates the quantities of the fifth floor.Design results through theguidance of teachers during the design and their own design.Including:project overview,construction deployment,construction preparation,construction plane design,constructionfacade design,construction profile design,construction schedule,quality assurance system,safety technical measures,finished product protection measures,civilized construction andenvironmental protection,technical saving measures.Key words:plane design,elevation design,section design目录摘要....2Abstract..2第1章绪论...71.1课题的背景和研究意义.71.2发展状况.....71.3设计的步骤与方法。。。。。。。。。。7第2章编制说明.92.1编制原则..92.2编制依据..9第3章设计说明..103.1区位条件..113.2现状条件..123.3规划条件..。。。。。。。。。。。。。11第4章建筑平面设计..104.1整体平面设计....134.1.1房屋的分类和设计要求134.1.2房间布局......134.2主要使用房间平面设计...134.2.1客房设计.....…4.2.2大厅及会议厅的设计..144.3辅助使用房间平面设计..134.3.1厕所浴室、盥洗室设计..........144.3.2厨房设计..…144.3.3餐厅设计....….144.4交通联系部分平面设计....134.3.1走廊144.3.2楼梯144.3.3门厅.14第5章建筑平面设计9第6章建筑立面设计.，17第7章建筑剖面设计.237.1楼梯剖面图....237.2房屋各部分高度确认237.2.1房屋的层高和净高7.2.2窗台高度.......147.2.3室内外高差14第8章建筑安全设计..·248.1建筑使用年限...248.2建筑抗震设计268.3建筑消防设计.27总结35参考文献.....36致谢.…37附录A维也纳宾馆建筑初步设计图A.1首层平面图图A.2客房平面图图A.3大厅及会议厅图图A.4厕所平面图图A.5厨房平面图图A.6楼梯面详图图A.7二层平面图图A.8正侧立面图图A.9剖面图v
