大连理工大学本科生宿舍楼设计

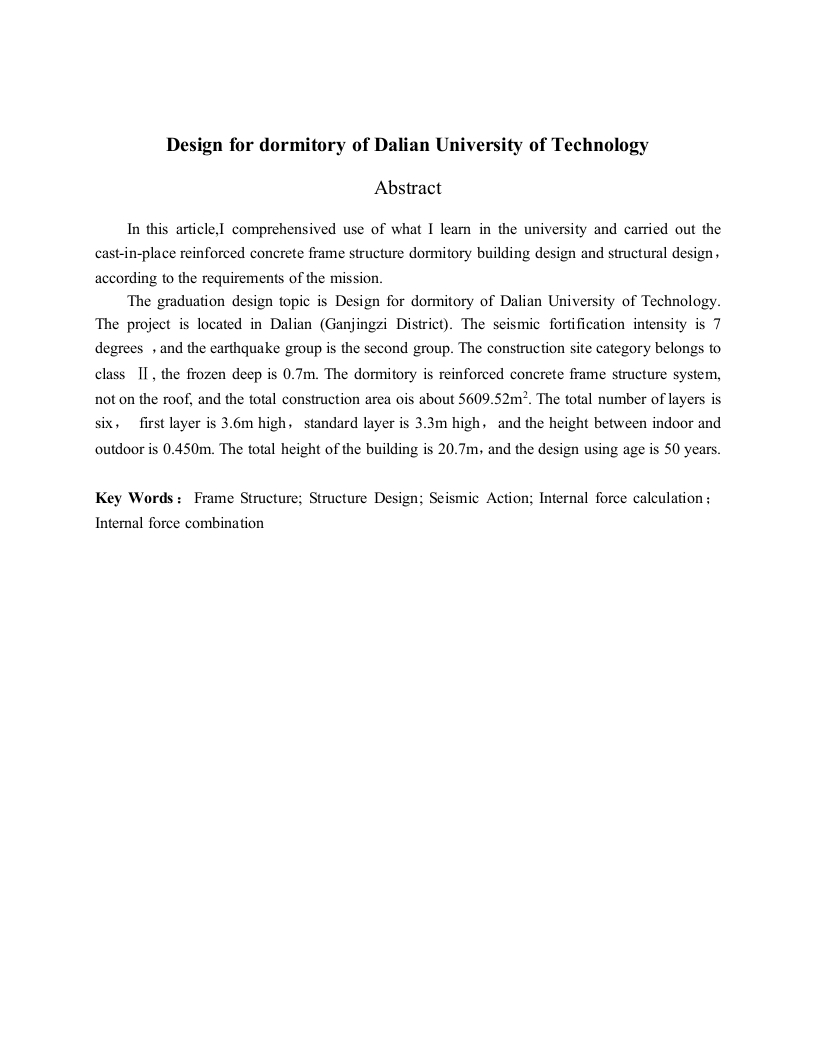

Design for dormitory of Dalian University of TechnologyAbstractIn this article,I comprehensived use of what I learn in the university and carried out thecast-in-place reinforced concrete frame structure dormitory building design and structural design,according to the requirements of the mission.The graduation design topic is Design for dormitory of Dalian University of Technology.The project is located in Dalian (Ganjingzi District).The seismic fortification intensity is 7degrees and the earthquake group is the second group.The construction site category belongs toclass II,the frozen deep is 0.7m.The dormitory is reinforced concrete frame structure system,not on the roof,and the total construction area ois about 5609.52m2.The total number of layers issix,first layer is 3.6m high,standard layer is 3.3m high,and the height between indoor andoutdoor is 0.450m.The total height of the building is 20.7m,and the design using age is 50 years.Key Words:Frame Structure;Structure Design;Seismic Action;Internal force calculation;Internal force combination
