年产一万吨UV固化导电油墨的生产工艺设计

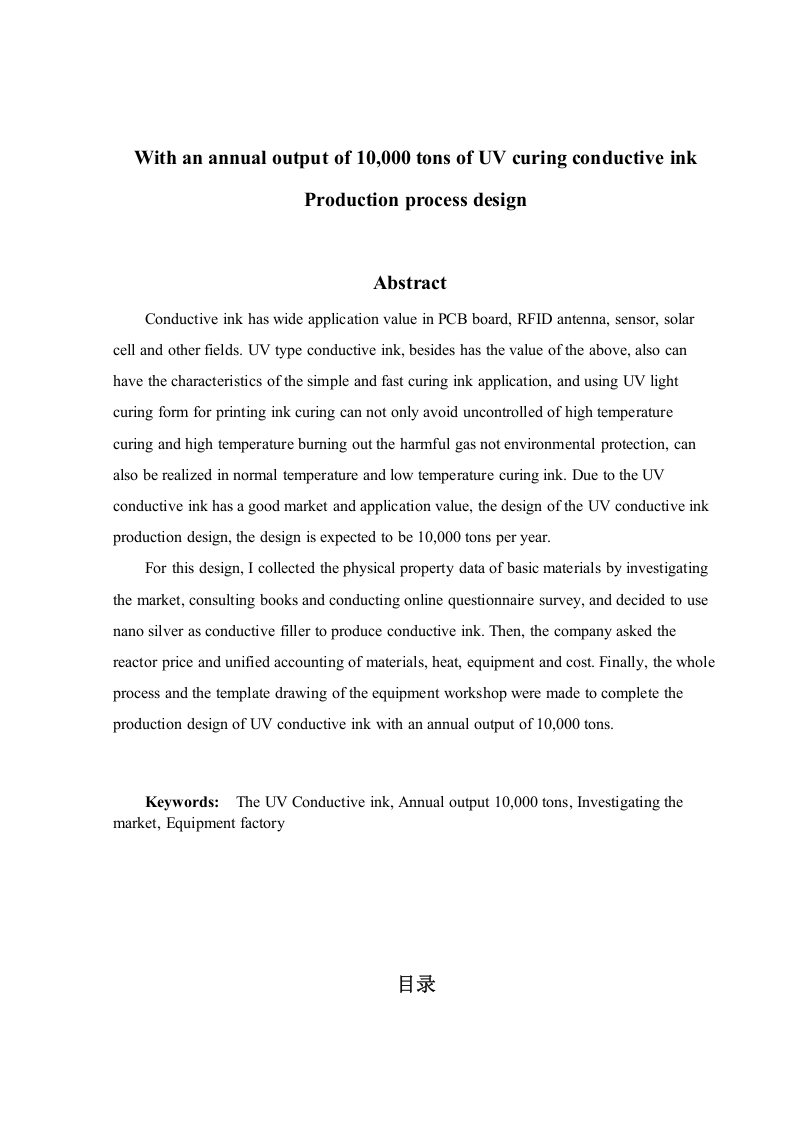

With an annual output of 10,000 tons of UV curing conductive inkProduction process designAbstractConductive ink has wide application value in PCB board,RFID antenna,sensor,solarcell and other fields.UV type conductive ink,besides has the value of the above,also canhave the characteristics of the simple and fast curing ink application,and using UV lightcuring form for printing ink curing can not only avoid uncontrolled of high temperaturecuring and high temperature burning out the harmful gas not environmental protection,canalso be realized in normal temperature and low temperature curing ink.Due to the UVconductive ink has a good market and application value,the design of the UV conductive inkproduction design,the design is expected to be 10,000 tons per year.For this design,I collected the physical property data of basic materials by investigatingthe market,consulting books and conducting online questionnaire survey,and decided to usenano silver as conductive filler to produce conductive ink.Then,the company asked thereactor price and unified accounting of materials,heat,equipment and cost.Finally,the wholeprocess and the template drawing of the equipment workshop were made to complete theproduction design of UV conductive ink with an annual output of 10,000 tons.Keywords:The UV Conductive ink,Annual output 10,000 tons,Investigating themarket,Equipment factory目录
