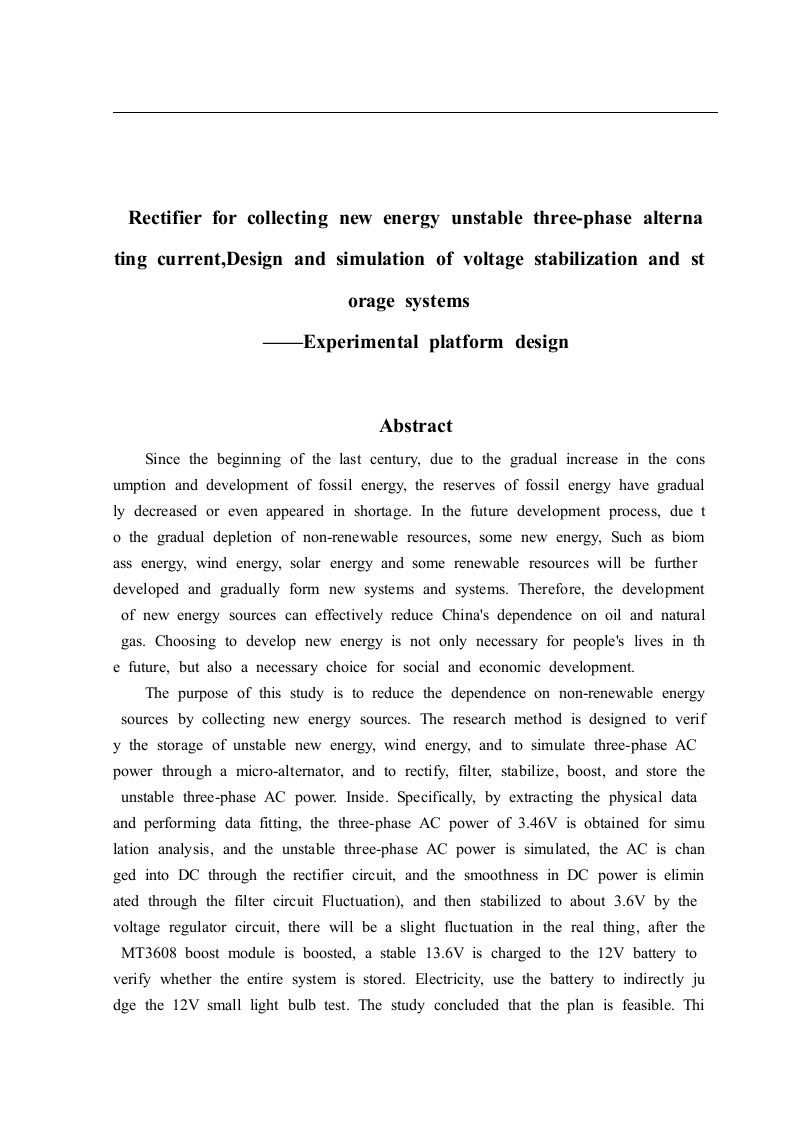

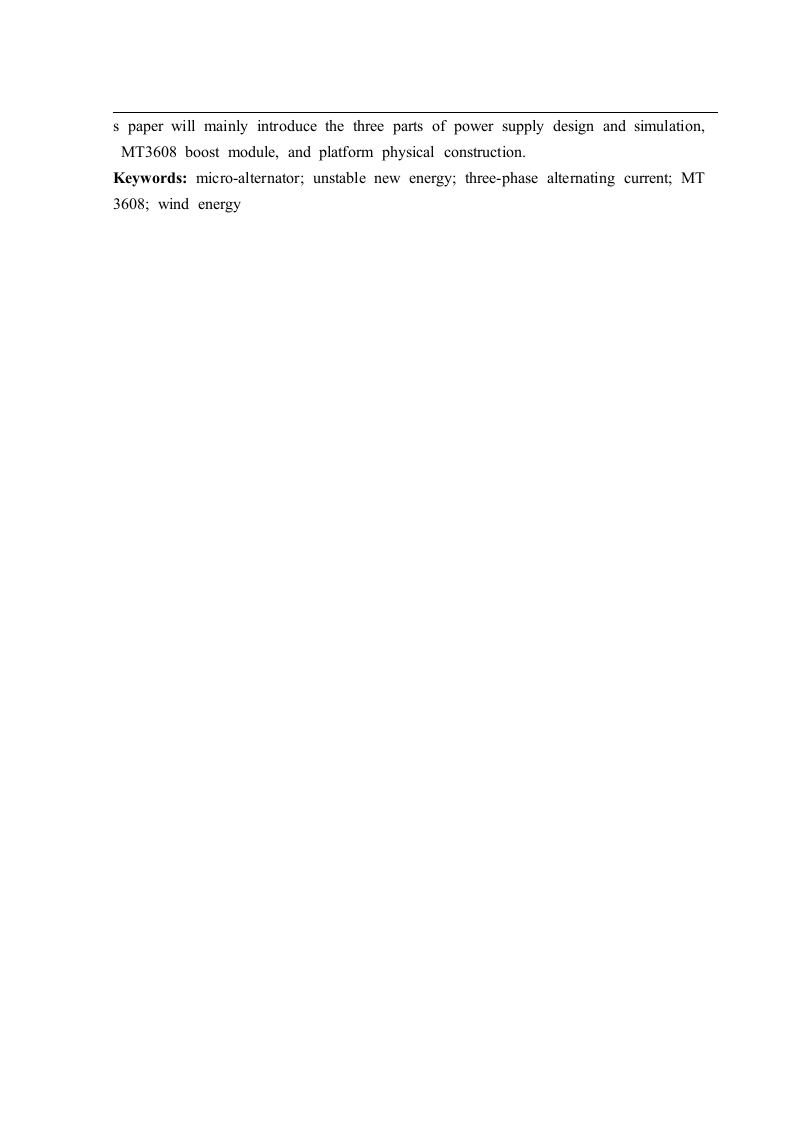

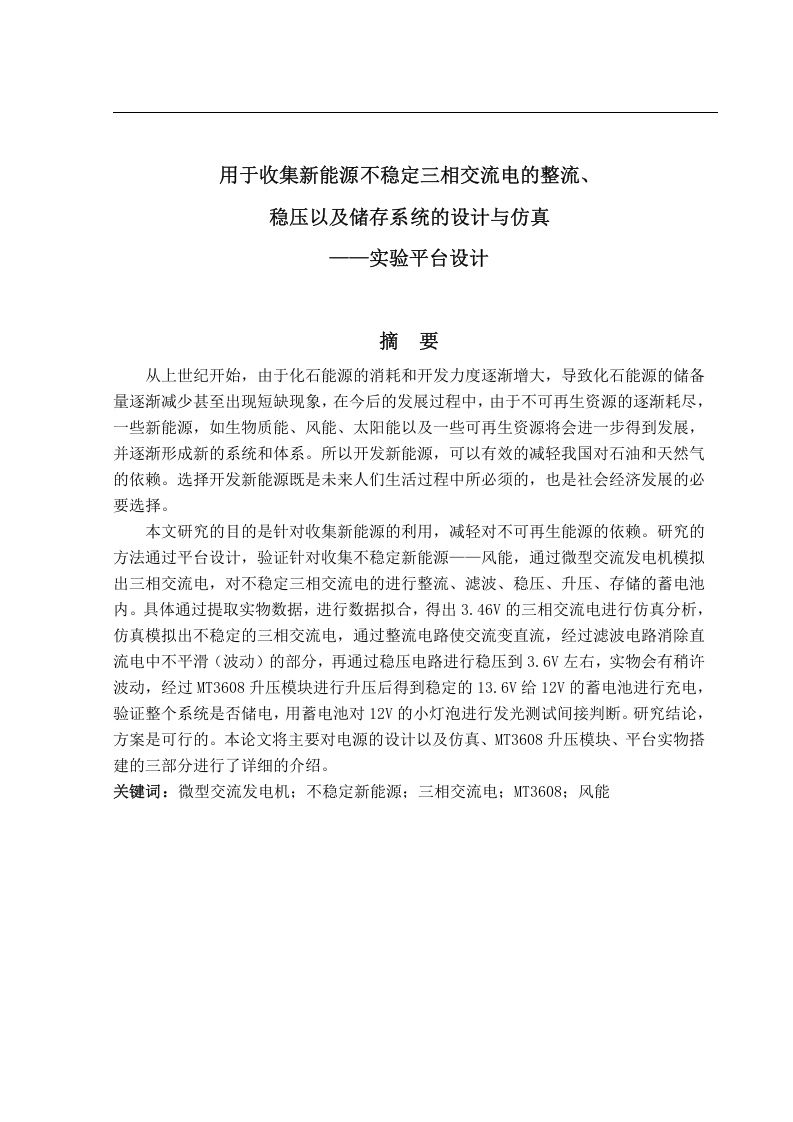

Rectifier for collecting new energy unstable three-phase alternating current,Design and simulation of voltage stabilization and storage systems-Experimental platform designAbstractSince the beginning of the last century,due to the gradual increase in the consumption and development of fossil energy,the reserves of fossil energy have gradually decreased or even appeared in shortage.In the future development process,due to the gradual depletion of non-renewable resources,some new energy,Such as biomass energy,wind energy,solar energy and some renewable resources will be furtherdeveloped and gradually form new systems and systems.Therefore,the developmentof new energy sources can effectively reduce China's dependence on oil and naturalgas.Choosing to develop new energy is not only necessary for people's lives in the future,but also a necessary choice for social and economic development.The purpose of this study is to reduce the dependence on non-renewable energysources by collecting new energy sources.The research method is designed to verify the storage of unstable new energy,wind energy,and to simulate three-phase ACpower through a micro-alternator,and to rectify,filter,stabilize,boost,and store theunstable three-phase AC power.Inside.Specifically,by extracting the physical dataand performing data fitting,the three-phase AC power of 3.46V is obtained for simulation analysis,and the unstable three-phase AC power is simulated,the AC is changed into DC through the rectifier circuit,and the smoothness in DC power is eliminated through the filter circuit Fluctuation),and then stabilized to about 3.6V by thevoltage regulator circuit,there will be a slight fluctuation in the real thing,after theMT3608 boost module is boosted,a stable 13.6V is charged to the 12V battery toverify whether the entire system is stored.Electricity,use the battery to indirectly judge the 12V small light bulb test.The study concluded that the plan is feasible.Thi
