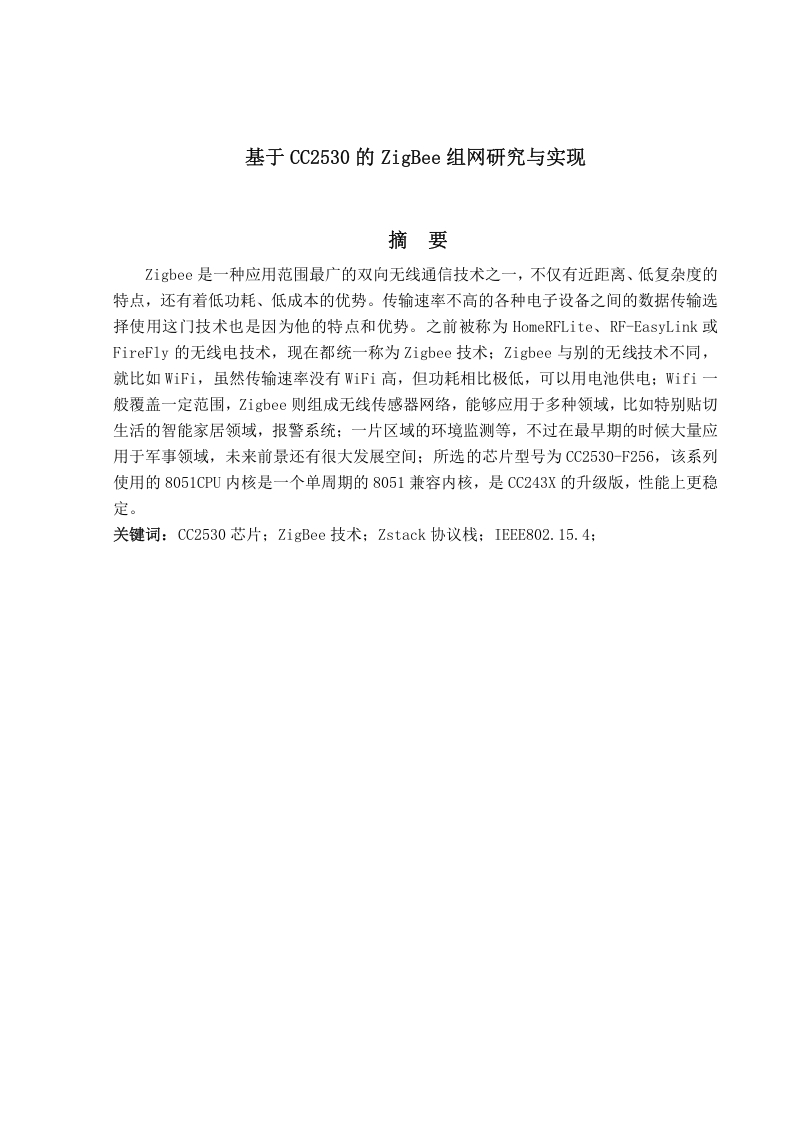

基于CC2530的ZigBee组网研究与实现

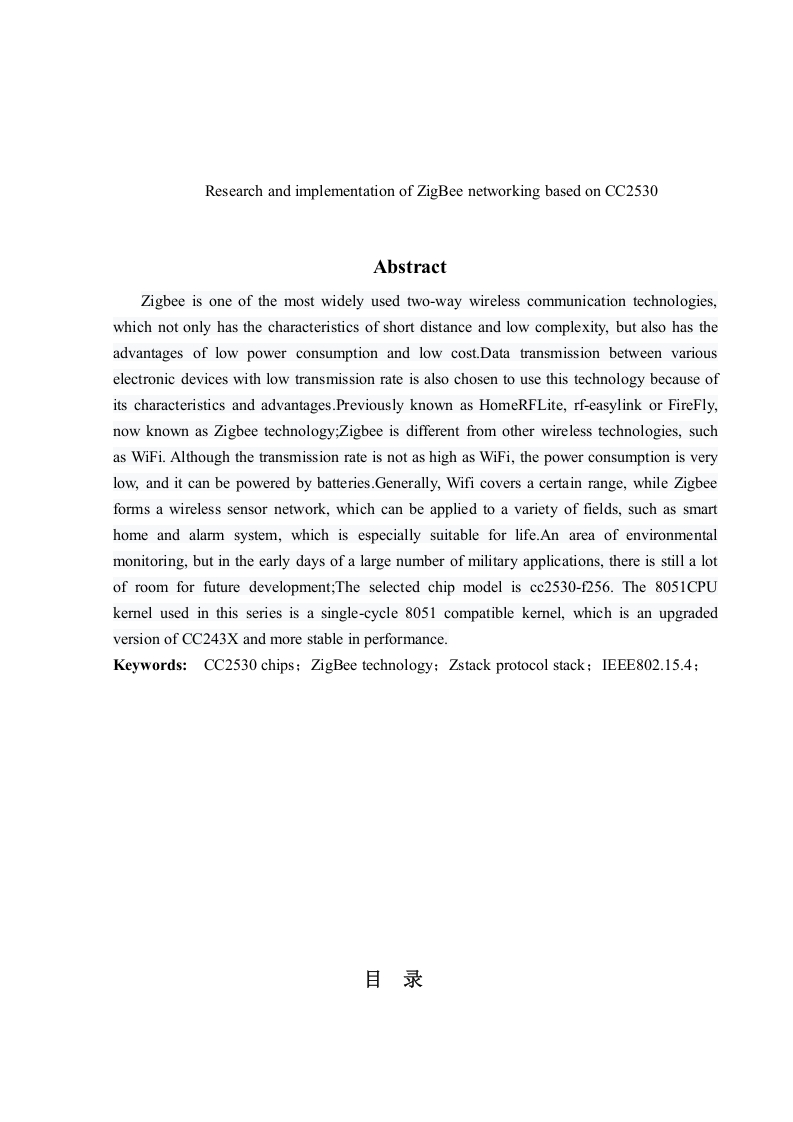

Research and implementation of ZigBee networking based on CC2530AbstractZigbee is one of the most widely used two-way wireless communication technologies,which not only has the characteristics of short distance and low complexity,but also has theadvantages of low power consumption and low cost.Data transmission between variouselectronic devices with low transmission rate is also chosen to use this technology because ofits characteristics and advantages.Previously known as HomeRFLite,rf-easylink or FireFly,now known as Zigbee technology;Zigbee is different from other wireless technologies,suchas WiFi.Although the transmission rate is not as high as WiFi,the power consumption is verylow,and it can be powered by batteries.Generally,Wifi covers a certain range,while Zigbeeforms a wireless sensor network,which can be applied to a variety of fields,such as smarthome and alarm system,which is especially suitable for life.An area of environmentalmonitoring,but in the early days of a large number of military applications,there is still a lotof room for future development;The selected chip model is cc2530-f256.The 8051CPUkernel used in this series is a single-cycle 8051 compatible kernel,which is an upgradedversion of CC243X and more stable in performance.Keywords:CC2530 chips:ZigBee technology:Zstack protocol stack:IEEE802.15.4;目录
