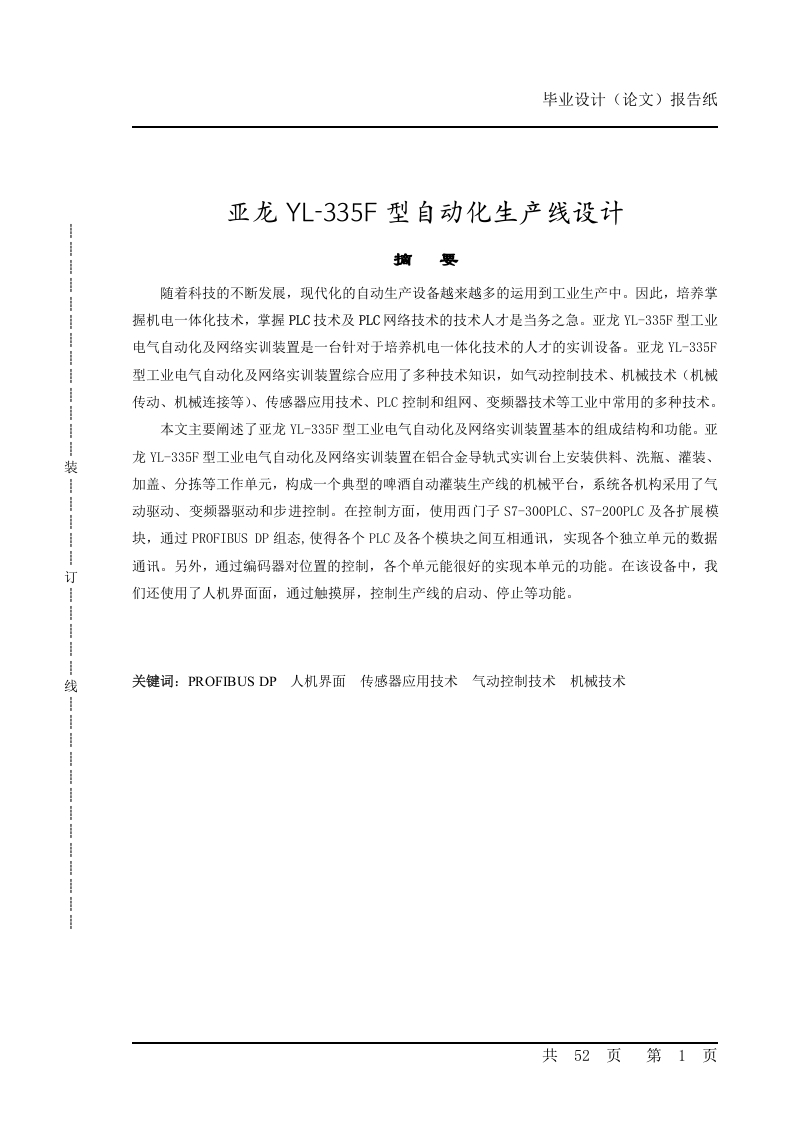

YL-335F型自动化生产线设计

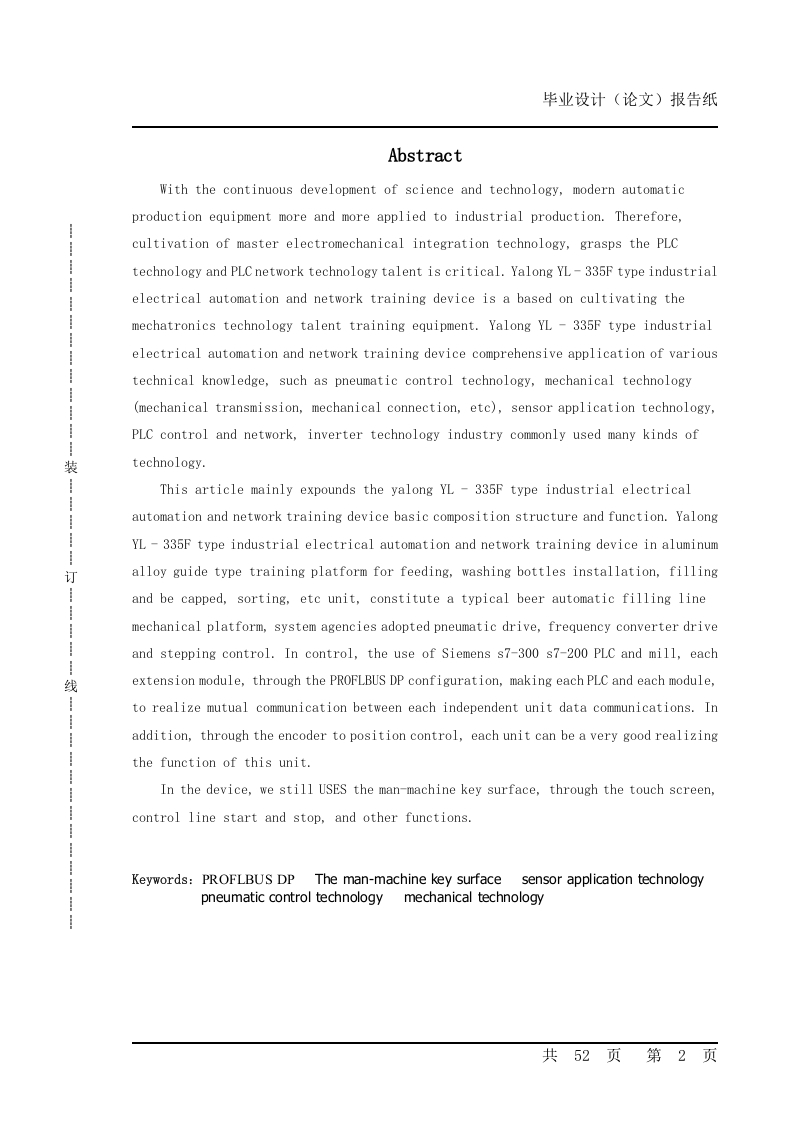

毕业设计（论文）报告纸AbstractWith the continuous development of science and technology,modern automaticproduction equipment more and more applied to industrial production.Therefore,cultivation of master electromechanical integration technology,grasps the PLCtechnology and PLC network technology talent is critical.Yalong YL-335F type industrialelectrical automation and network training device is a based on cultivating themechatronics technology talent training equipment.Yalong YL -335F type industrialelectrical automation and network training device comprehensive application of varioustechnical knowledge,such as pneumatic control technology,mechanical technology(mechanical transmission,mechanical connection,etc),sensor application technology,PLC control and network,inverter technology industry commonly used many kinds of装technology.This article mainly expounds the yalong YL -335F type industrial electricalautomation and network training device basic composition structure and function.YalongYL-335F type industrial electrical automation and network training device in aluminum订alloy guide type training platform for feeding,washing bottles installation,fillingand be capped,sorting,etc unit,constitute a typical beer automatic filling linemechanical platform,system agencies adopted pneumatic drive,frequency converter driveand stepping control.In control,the use of Siemens s7-300 s7-200 PLC and mill,each线extension module,through the PROFLBUS DP configuration,making each PLC and each module,to realize mutual communication between each independent unit data communications.Inaddition,through the encoder to position control,each unit can be a very good realizingthe function of this unit.In the device,we still USES the man-machine key surface,through the touch screen,control line start and stop,and other functions.Keywords:PROFLBUS DP The man-machine key surface sensor application technologypneumatic control technology mechanical technology共52页第2页
