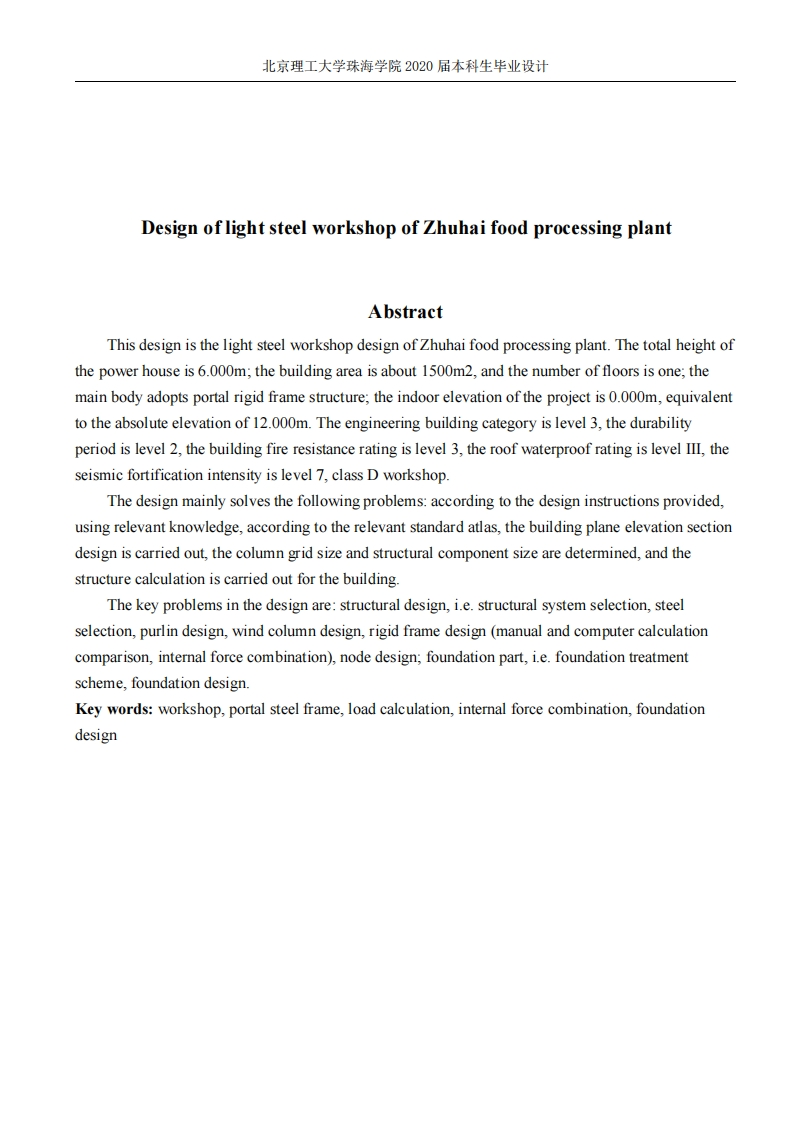

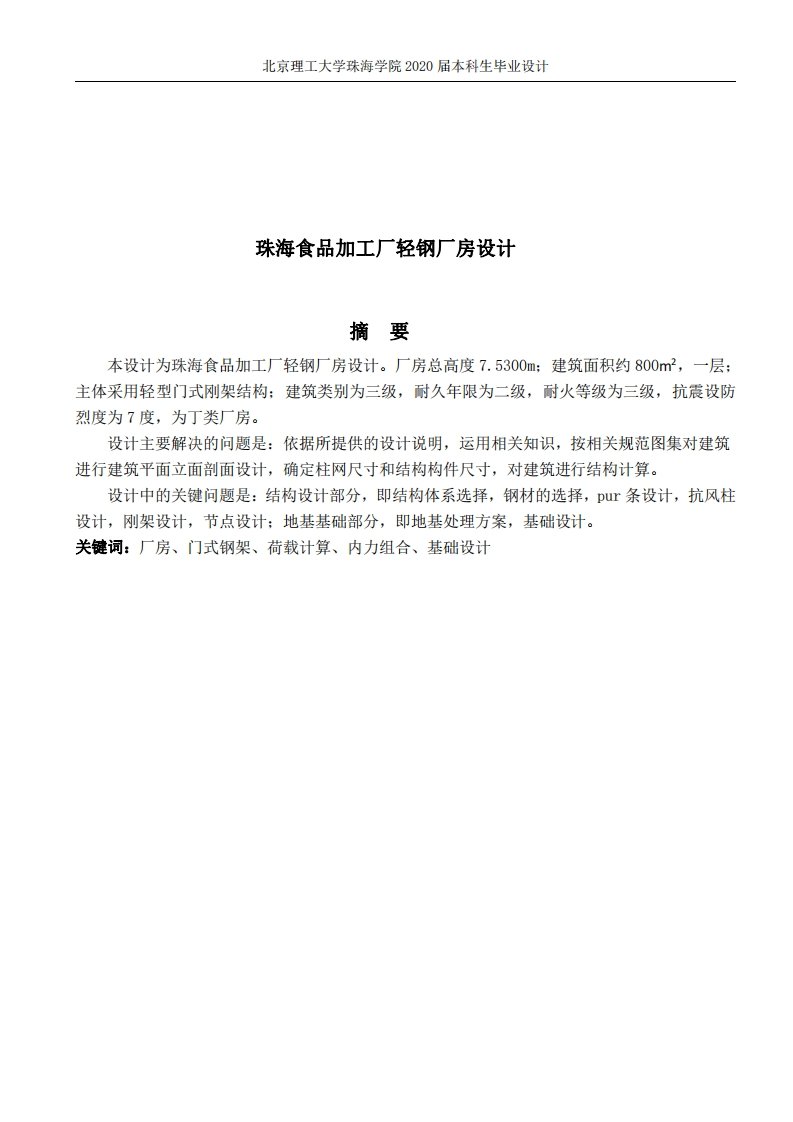

北京理工大学珠海学院2020届本科生毕业设计Design of light steel workshop of Zhuhai food processing plantAbstractThis design is the light steel workshop design of Zhuhai food processing plant.The total height ofthe power house is 6.000m;the building area is about 1500m2,and the number of floors is one;themain body adopts portal rigid frame structure;the indoor elevation of the project is 0.000m,equivalentto the absolute elevation of 12.000m.The engineering building category is level 3,the durabilityperiod is level 2,the building fire resistance rating is level 3,the roof waterproof rating is level III,theseismic fortification intensity is level 7,class D workshop.The design mainly solves the following problems:according to the design instructions provided,using relevant knowledge,according to the relevant standard atlas,the building plane elevation sectiondesign is carried out,the column grid size and structural component size are determined,and thestructure calculation is carried out for the building.The key problems in the design are:structural design,i.e.structural system selection,steelselection,purlin design,wind column design,rigid frame design(manual and computer calculationcomparison,internal force combination),node design;foundation part,i.e.foundation treatmentscheme,foundation design.Key words:workshop,portal steel frame,load calculation,internal force combination,foundationdesign
