悬臂式斗轮堆取料机的取料机构的设计

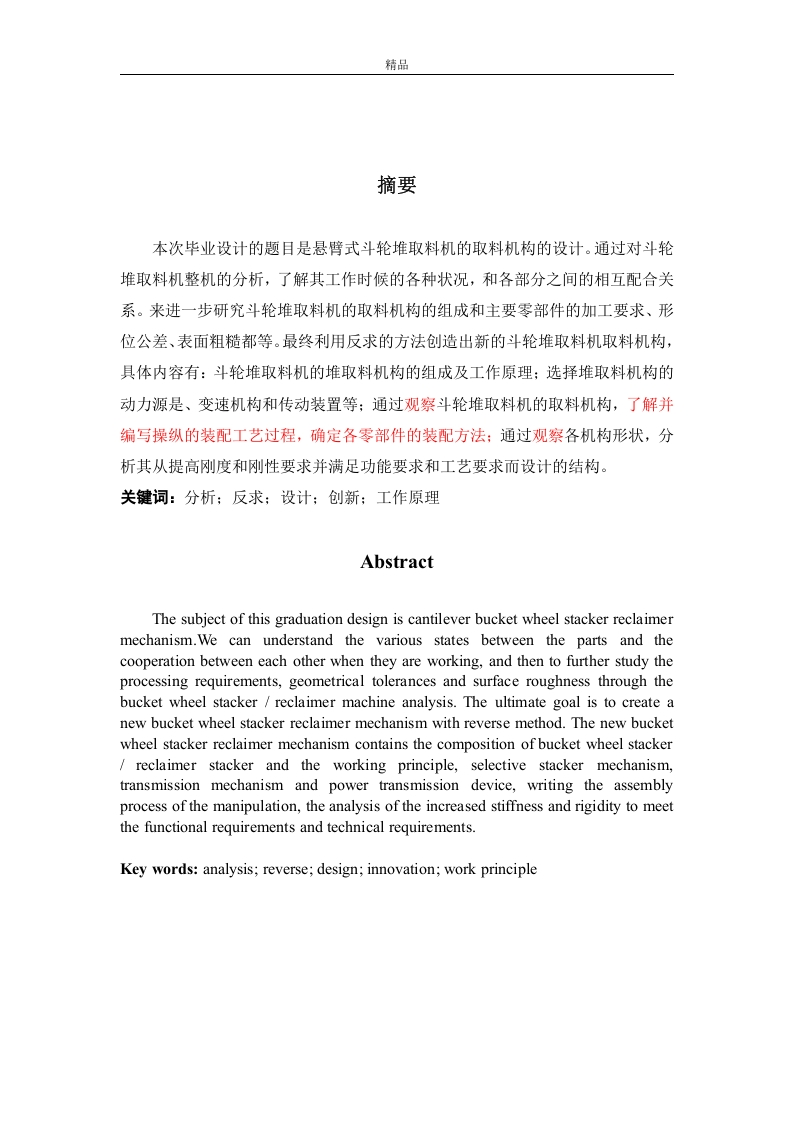

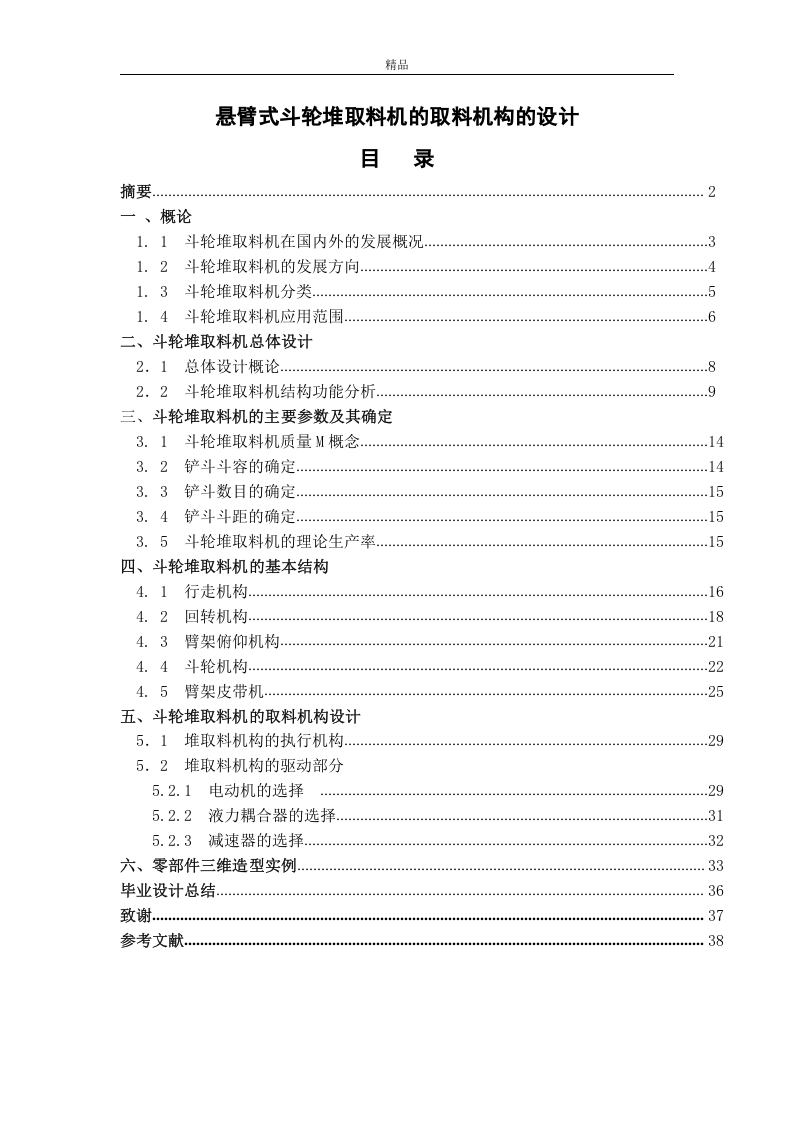

精品摘要本次毕业设计的题目是悬臂式斗轮堆取料机的取料机构的设计。通过对斗轮堆取料机整机的分析，了解其工作时候的各种状况，和各部分之间的相互配合关系。来进一步研究斗轮堆取料机的取料机构的组成和主要零部件的加工要求、形位公差、表面粗糙都等。最终利用反求的方法创造出新的斗轮堆取料机取料机构，具体内容有：斗轮堆取料机的堆取料机构的组成及工作原理；选择堆取料机构的动力源是、变速机构和传动装置等：通过观察斗轮堆取料机的取料机构，了解并编写操纵的装配工艺过程，确定各零部件的装配方法：通过观察各机构形状，分析其从提高刚度和刚性要求并满足功能要求和工艺要求而设计的结构。关键词：分析：反求：设计；创新：工作原理AbstractThe subject of this graduation design is cantilever bucket wheel stacker reclaimermechanism.We can understand the various states between the parts and thecooperation between each other when they are working,and then to further study theprocessing requirements,geometrical tolerances and surface roughness through thebucket wheel stacker reclaimer machine analysis.The ultimate goal is to create anew bucket wheel stacker reclaimer mechanism with reverse method.The new bucketwheel stacker reclaimer mechanism contains the composition of bucket wheel stackerreclaimer stacker and the working principle,selective stacker mechanism,transmission mechanism and power transmission device,writing the assemblyprocess of the manipulation,the analysis of the increased stiffness and rigidity to meetthe functional requirements and technical requirements.Key words:analysis;reverse;design;innovation;work principle
