CJSJ-200齿轮复合加工机床电气控制系统设计

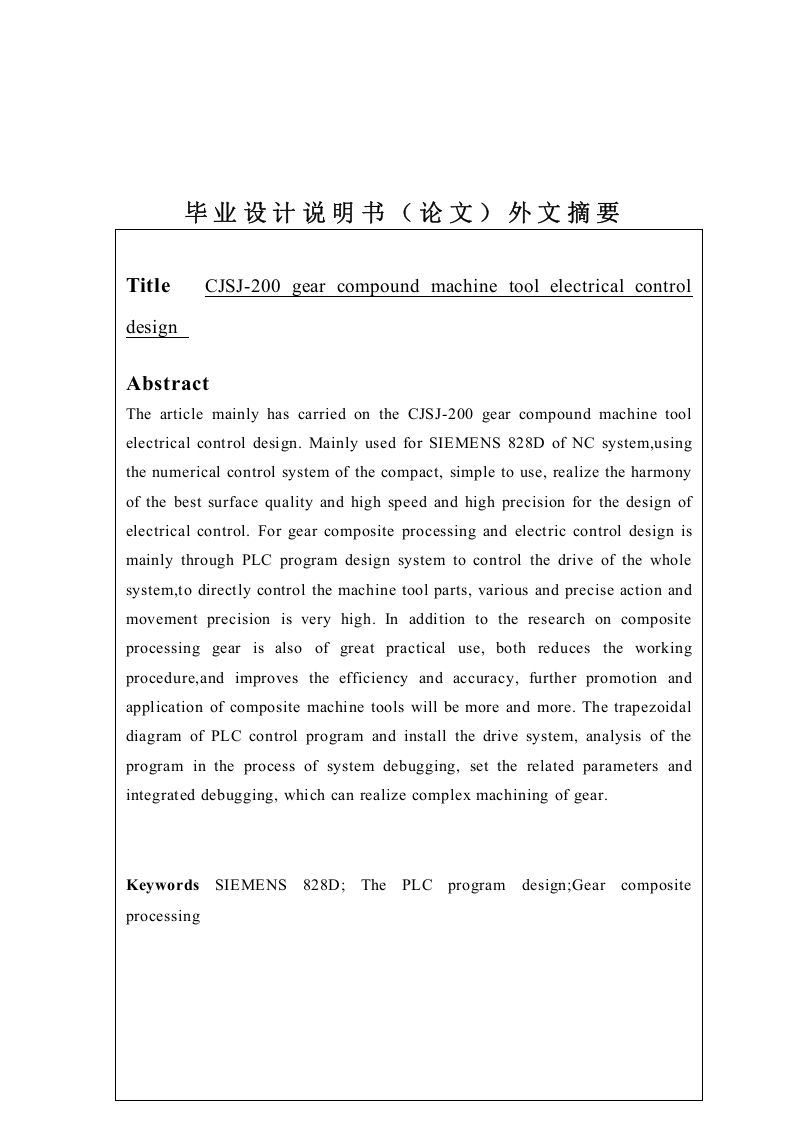

毕业设计说明书（论文）外文摘要TitleCJSJ-200 gear compound machine tool electrical controldesignAbstractThe article mainly has carried on the CJSJ-200 gear compound machine toolelectrical control design.Mainly used for SIEMENS 828D of NC system,usingthe numerical control system of the compact,simple to use,realize the harmonyof the best surface quality and high speed and high precision for the design ofelectrical control.For gear composite processing and electric control design ismainly through PLC program design system to control the drive of the wholesystem,to directly control the machine tool parts,various and precise action andmovement precision is very high.In addition to the research on compositeprocessing gear is also of great practical use,both reduces the workingprocedure,and improves the efficiency and accuracy,further promotion andapplication of composite machine tools will be more and more.The trapezoidaldiagram of PLC control program and install the drive system,analysis of theprogram in the process of system debugging,set the related parameters andintegrated debugging,which can realize complex machining of gear.Keywords SIEMENS 828D;The PLC program design;Gear compositeprocessing
