含缺陷油气管道漏磁数值模拟分析

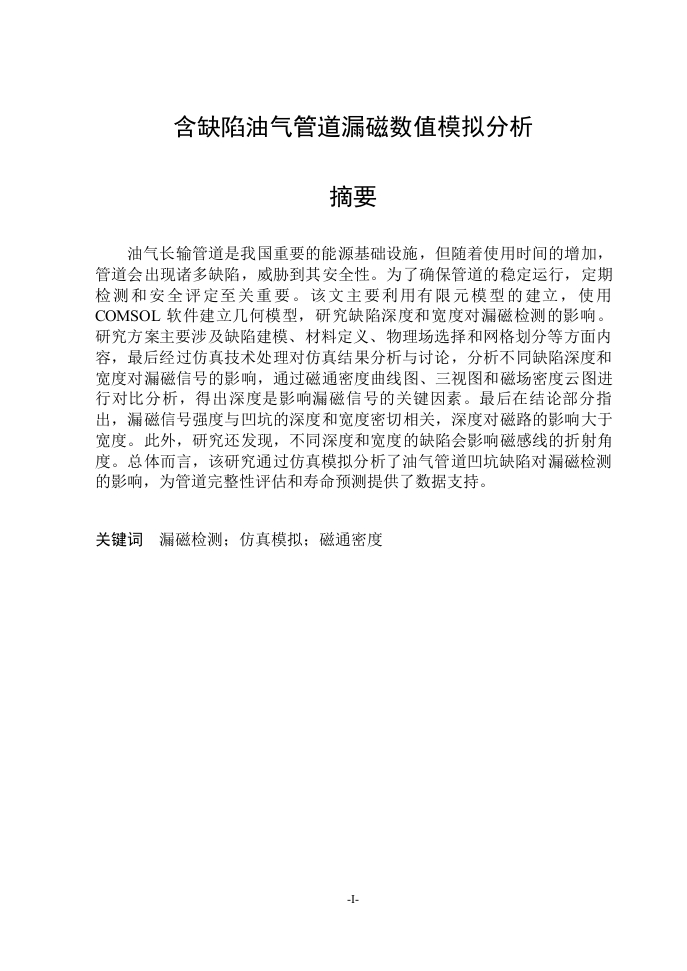

含缺陷油气管道漏滋数值模拟分析摘要油气长输管道是我国重要的能源基础设施，但随着使用时间的增加，管道会出现诸多缺陷，威胁到其安全性。为了确保管道的稳定运行，定期检测和安全评定至关重要。该文主要利用有限元模型的建立，使用COMSOL软件建立几何模型，研究缺陷深度和宽度对漏磁检测的影响。研究方案主要涉及缺陷建模、材料定义、物理场选择和网格划分等方面内容，最后经过仿真技术处理对仿真结果分析与讨论，分析不同缺陷深度和宽度对漏磁信号的影响，通过磁通密度曲线图、三视图和磁场密度云图进行对比分析，得出深度是影响漏磁信号的关键因素。最后在结论部分指出，漏磁信号强度与凹坑的深度和宽度密切相关，深度对磁路的影响大于宽度。此外，研究还发现，不同深度和宽度的缺陷会影响磁感线的折射角度。总体而言，该研究通过仿真模拟分析了油气管道凹坑缺陷对漏磁检测的影响，为管道完整性评估和寿命预测提供了数据支持。关键词漏磁检测：仿真模拟：磁通密度SimulationanalysisofmagneticfluxleakageinoilpipelinesAbstractLong-distance oil and gas pipeline is an important energy infrastructure inChina,but with the increase of service time,many defects will appear in thepipeline,threatening its safety.In order to ensure the stable operation ofpipelines,regular inspection and safety assessment are very important.Firstly,the basic principle of magnetic flux leakage detection is studied.Magnetic fluxleakage detection technology is to use the characteristics of magnetization offerromagnetic materials by external magnetic field to detect magnetic fluxleakage signals in materials to get the magnetic induction circuit of materials.Secondly,the electromagnetic basis includes Faraday's law of electromagneticinduction and Ampere's law,which describe the electromagnetic field inmagnetic flux leakage testing.Thirdly,the finite element model is established,and the geometric model is established by COMSOL software to study theinfluence of defect depth and width on magnetic flux leakage detection.Itmainly involves defect modeling,material definition,physical field selectionand grid division.Finally,the simulation results are analyzed and discussed,andthe influence of different defect depths and widths on magnetic flux leakagesignals is analyzed.Through the comparative analysis of magnetic flux densitycurves,three views and magnetic field density nephograms,it is concluded thatdepth is the key factor affecting magnetic flux leakage signals.In the conclusion,it is pointed out that the intensity of magnetic leakage signal is closely related tothe depth and width of the pit,and the depth has greater influence on the-Ⅱ-magnetic circuit than the width.In addition,it is also found that defects withdifferent depths and widths will affect the refractive angle of magnetic inductionlines.Generally speaking,this study analyzes the influence of pit defects onmagnetic flux leakage detection through simulation,which provides datasupport for pipeline integrity evaluation and life prediction.Keywords magnetic leakage detection,simulation modelling,magnetic field--目录摘要Abstract.…I第1章绪论1.1课题背景1.2研究意义11.3国内外研究现状分析31.4论文研究的主要内容第2章漏磁检测原理基础与电磁学基础72.1漏磁检测技术..72.2漏磁检测原理分析92.3电磁学基础92.4仿真软件介绍132.5本章小结14第3章漏磁检测有限元模型153.1几何模型153.2研究方案153.2.1缺陷建模方案153.2.2材料定义163.2.3物理场的选择173.2.4网格划分173.2.5计算方法183.2.6结果查看…193.3本章小结20第4章仿真结果分析与讨论214.1不同磁路特征下的磁路特性分析214.1.1不同缺陷深度仿真结果分析214.1.2不同缺陷宽度仿真结果分析224.1.3磁通密度曲线图对比分析.…234.2磁通密度三视图…。.234.2.1不同缺陷深度磁通密度三视图244.2.2不同缺陷宽度磁通密度三视图.254.3磁通密度云图.264.3.1不同缺陷深度磁场密度云图26-IV-
