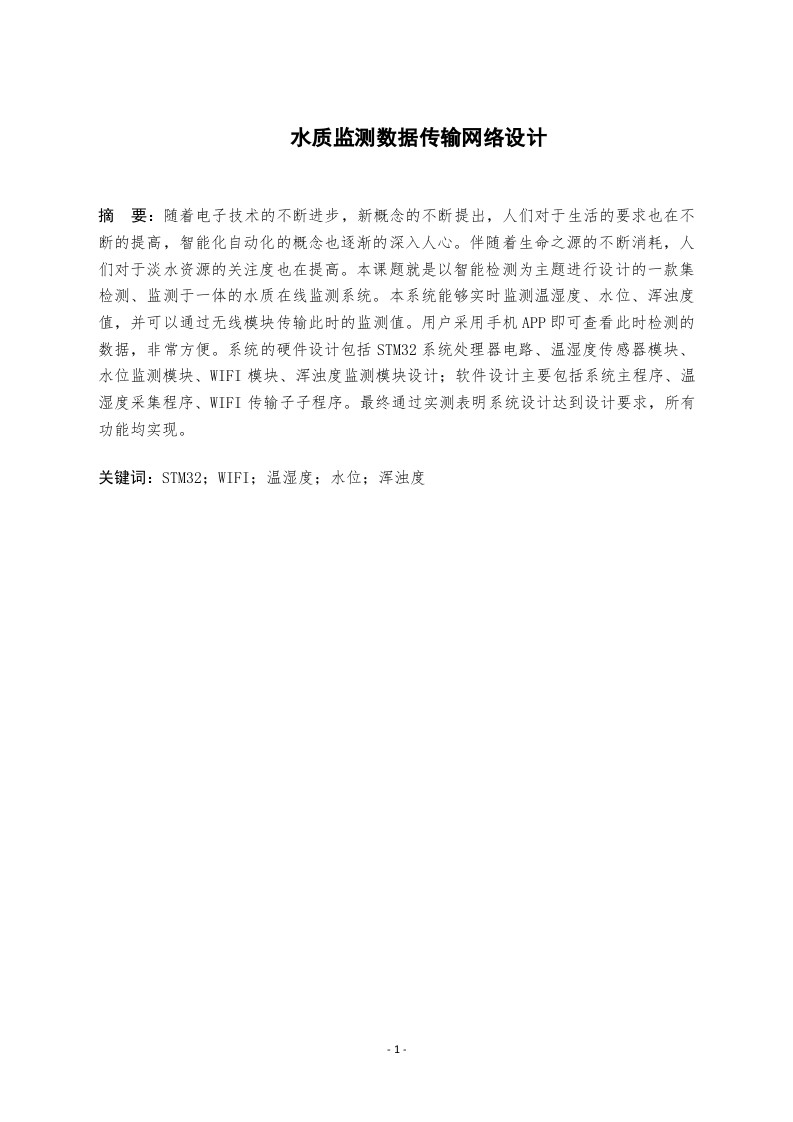

水质监测数据传输网络设计

Water quality monitoring data transmission network designChenmengzhuschool of Electronic Information Engineering,Electronic information engineering,Class06Grade 2016 Instructor:Peng TingAbstract:With the continuous progress of electronic technology,new concepts areconstantly put forward,people's requirements for life are also constantly improving,theconcept of intelligent automation is also gradually deeply rooted in people's minds.Alongwith the continuous consumption of the source of life,people's attention to freshwaterresources is also increasing.This subject is an online water quality monitoring system withintelligent detection as the theme.The system can monitor temperature and humidity,waterlevel and turbidity in real time,and can transmit the monitoring value through wirelessmodule.The user can check the detected data by using the mobile APP,which is veryconvenient.The hardware design of the system includes STM32 system processor circuit,temperature and humidity sensor module,water level monitoring module,WIFI module andturbidity monitoring module.The software design mainly includes the main program of thesystem,temperature and humidity acquisition program,WIFI transmission sub-subroutine.Finally,the test shows that the system design meets the design requirements and all thefunctions are realized.Key words:STM32;WIFI;Temperature and humidity;The water level;turbidity2.
