自动点胶机结构设计

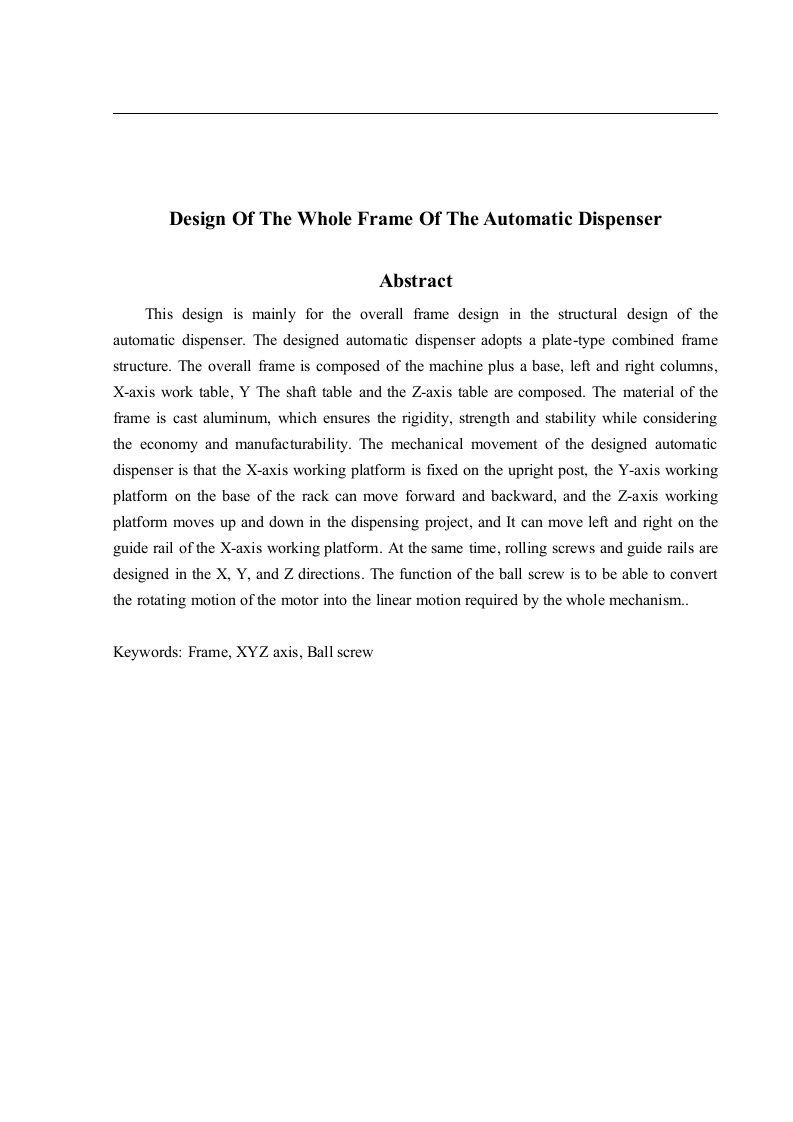

Design Of The Whole Frame Of The Automatic DispenserAbstractThis design is mainly for the overall frame design in the structural design of theautomatic dispenser.The designed automatic dispenser adopts a plate-type combined framestructure.The overall frame is composed of the machine plus a base,left and right columns,X-axis work table,Y The shaft table and the Z-axis table are composed.The material of theframe is cast aluminum,which ensures the rigidity,strength and stability while consideringthe economy and manufacturability.The mechanical movement of the designed automaticdispenser is that the X-axis working platform is fixed on the upright post,the Y-axis workingplatform on the base of the rack can move forward and backward,and the Z-axis workingplatform moves up and down in the dispensing project,and It can move left and right on theguide rail of the X-axis working platform.At the same time,rolling screws and guide rails aredesigned in the X,Y,and Z directions.The function of the ball screw is to be able to convertthe rotating motion of the motor into the linear motion required by the whole mechanism..Keywords:Frame,XYZ axis,Ball screw
