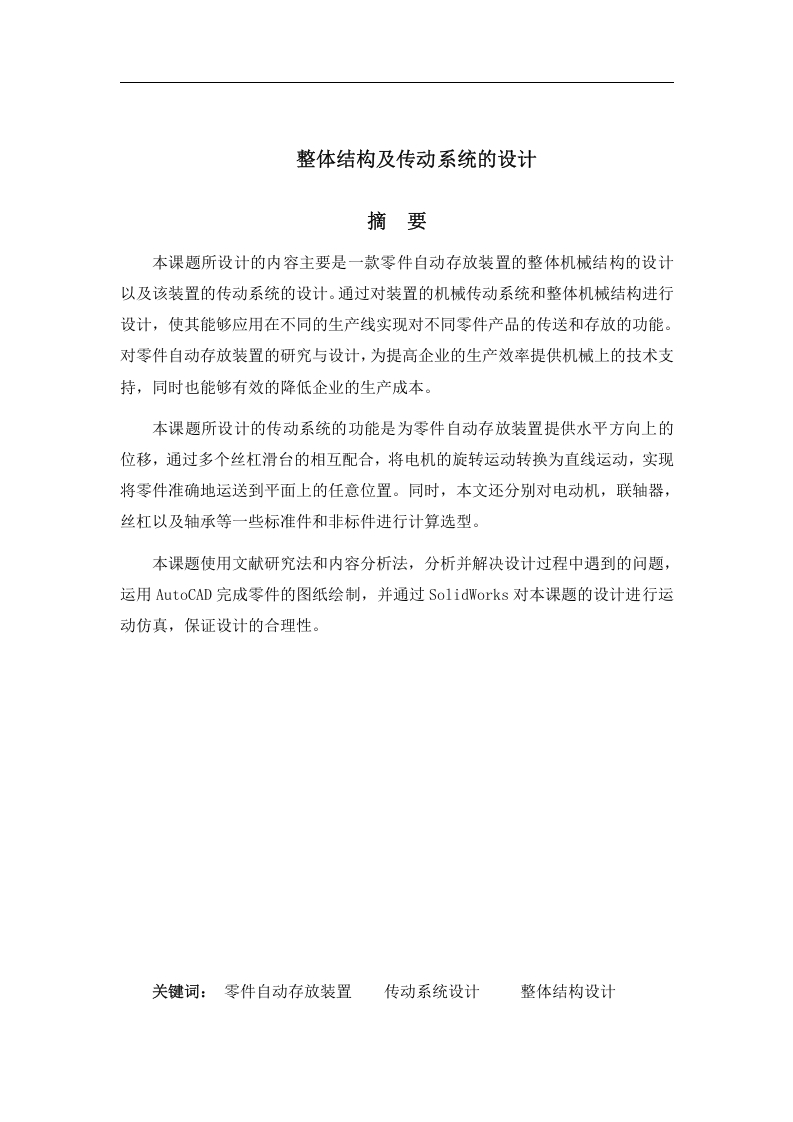

整体结构及传动系统的设计

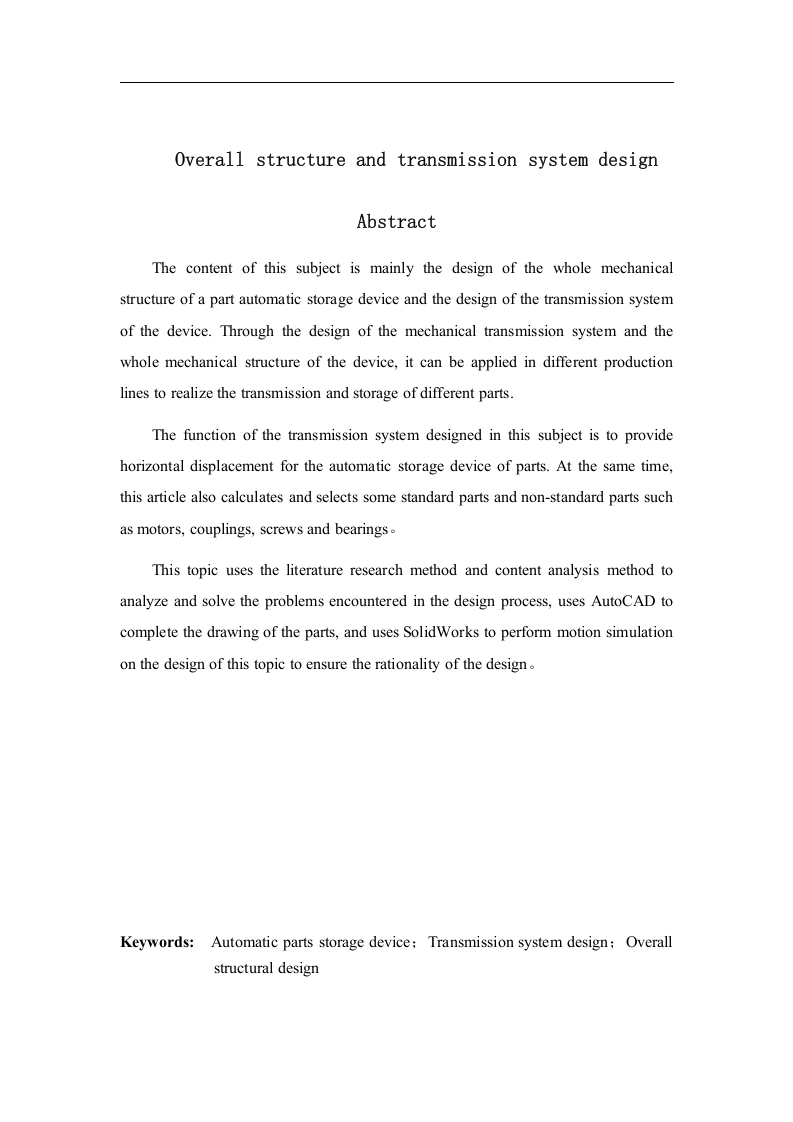

Overall structure and transmission system designAbstractThe content of this subject is mainly the design of the whole mechanicalstructure of a part automatic storage device and the design of the transmission systemof the device.Through the design of the mechanical transmission system and thewhole mechanical structure of the device,it can be applied in different productionlines to realize the transmission and storage of different parts.The function of the transmission system designed in this subject is to providehorizontal displacement for the automatic storage device of parts.At the same time,this article also calculates and selects some standard parts and non-standard parts suchas motors,couplings,screws and bearings.This topic uses the literature research method and content analysis method toanalyze and solve the problems encountered in the design process,uses AutoCAD tocomplete the drawing of the parts,and uses SolidWorks to perform motion simulationon the design of this topic to ensure the rationality of the design.Keywords:Automatic parts storage device:Transmission system design:Overallstructural design
