糖果包装机的设计—扭结机的结构设计及仿真

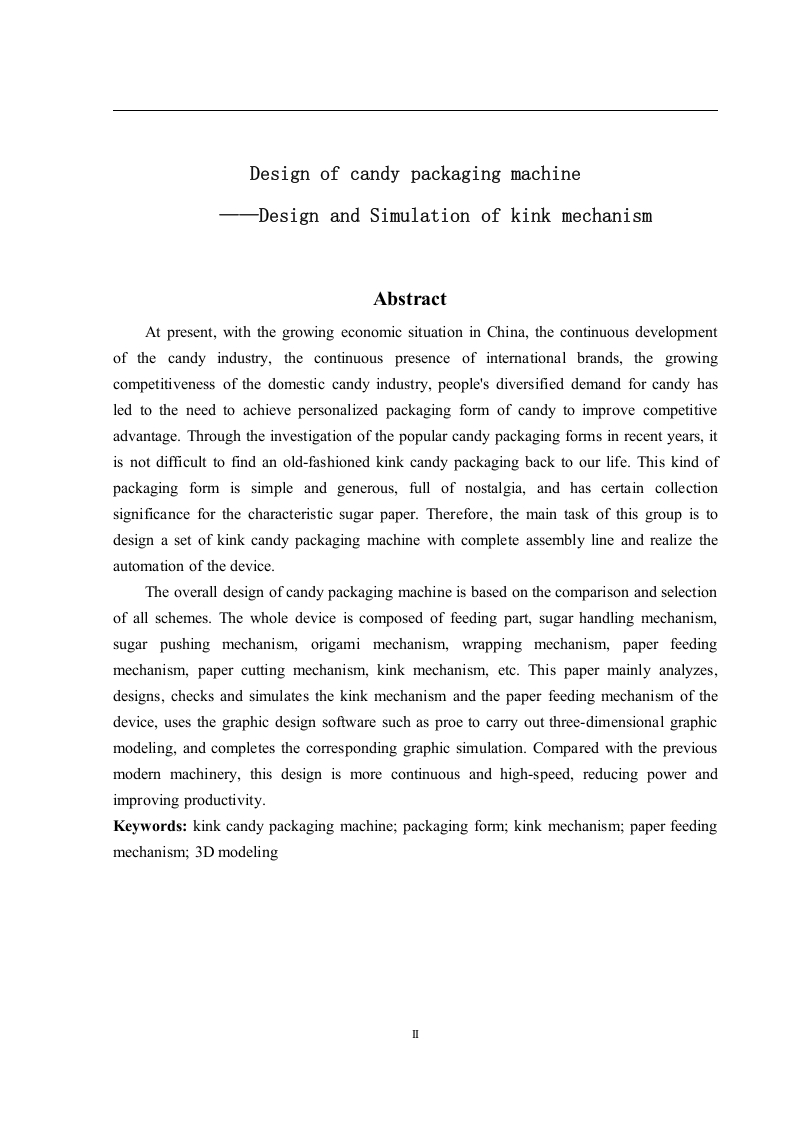

Design of candy packaging machine-Design and Simulation of kink mechanismAbstractAt present,with the growing economic situation in China,the continuous developmentof the candy industry,the continuous presence of international brands,the growingcompetitiveness of the domestic candy industry,people's diversified demand for candy hasled to the need to achieve personalized packaging form of candy to improve competitiveadvantage.Through the investigation of the popular candy packaging forms in recent years,itis not difficult to find an old-fashioned kink candy packaging back to our life.This kind ofpackaging form is simple and generous,full of nostalgia,and has certain collectionsignificance for the characteristic sugar paper.Therefore,the main task of this group is todesign a set of kink candy packaging machine with complete assembly line and realize theautomation of the device.The overall design of candy packaging machine is based on the comparison and selectionof all schemes.The whole device is composed of feeding part,sugar handling mechanism,sugar pushing mechanism,origami mechanism,wrapping mechanism,paper feedingmechanism,paper cutting mechanism,kink mechanism,etc.This paper mainly analyzes,designs,checks and simulates the kink mechanism and the paper feeding mechanism of thedevice,uses the graphic design software such as proe to carry out three-dimensional graphicmodeling,and completes the corresponding graphic simulation.Compared with the previousmodern machinery,this design is more continuous and high-speed,reducing power andimproving productivity.Keywords:kink candy packaging machine;packaging form;kink mechanism;paper feedingmechanism;3D modeling
