多场景功能集成型智能写字台

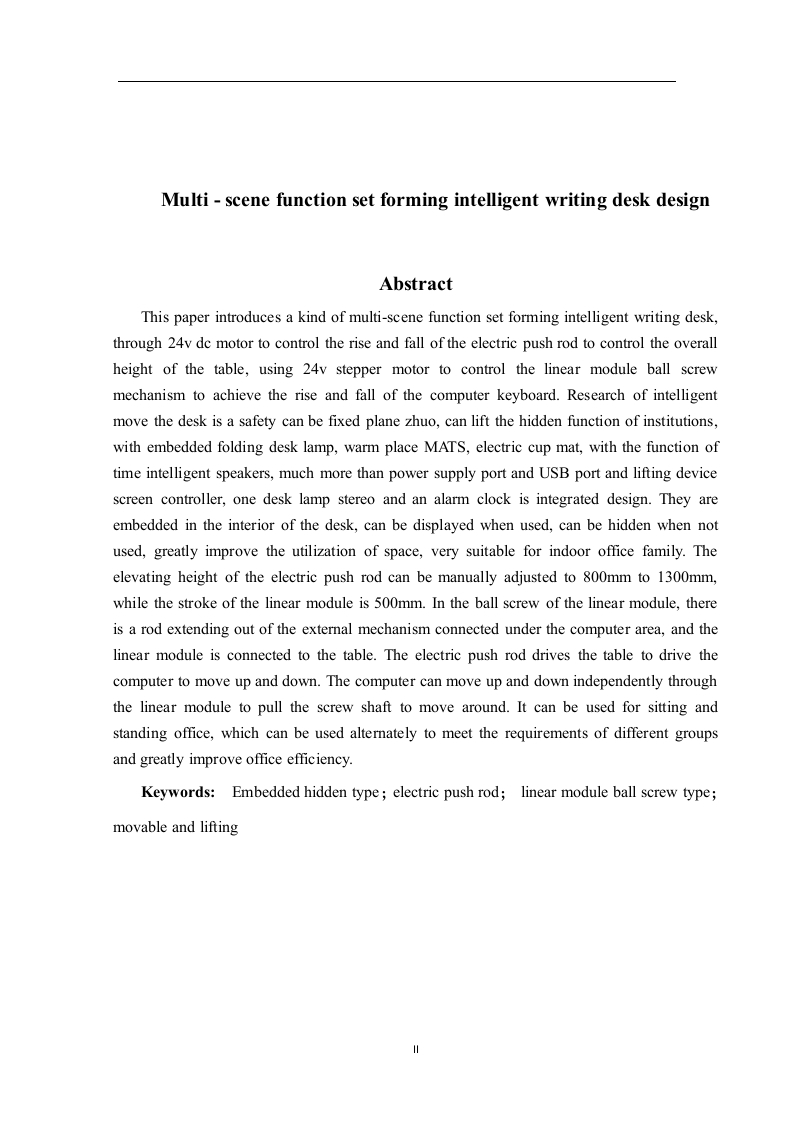

Multi -scene function set forming intelligent writing desk designAbstractThis paper introduces a kind of multi-scene function set forming intelligent writing desk,through 24v dc motor to control the rise and fall of the electric push rod to control the overallheight of the table,using 24v stepper motor to control the linear module ball screwmechanism to achieve the rise and fall of the computer keyboard.Research of intelligentmove the desk is a safety can be fixed plane zhuo,can lift the hidden function of institutions,with embedded folding desk lamp,warm place MATS,electric cup mat,with the function oftime intelligent speakers,much more than power supply port and USB port and lifting devicescreen controller,one desk lamp stereo and an alarm clock is integrated design.They areembedded in the interior of the desk,can be displayed when used,can be hidden when notused,greatly improve the utilization of space,very suitable for indoor office family.Theelevating height of the electric push rod can be manually adjusted to 800mm to 1300mm,while the stroke of the linear module is 500mm.In the ball screw of the linear module,thereis a rod extending out of the external mechanism connected under the computer area,and thelinear module is connected to the table.The electric push rod drives the table to drive thecomputer to move up and down.The computer can move up and down independently throughthe linear module to pull the screw shaft to move around.It can be used for sitting andstanding office,which can be used alternately to meet the requirements of different groupsand greatly improve office efficiency.Keywords:Embedded hidden type;electric push rod;linear module ball screw type;movable and lifting
