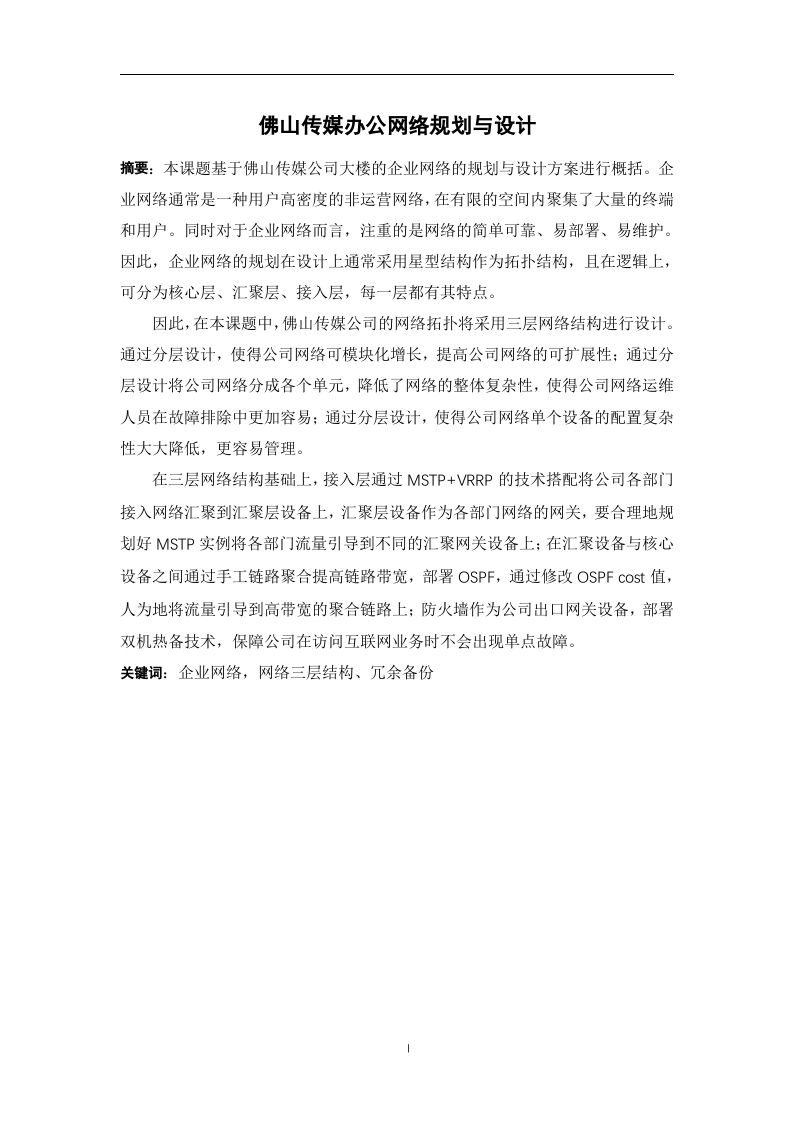

佛山传媒办公网络规划与设计

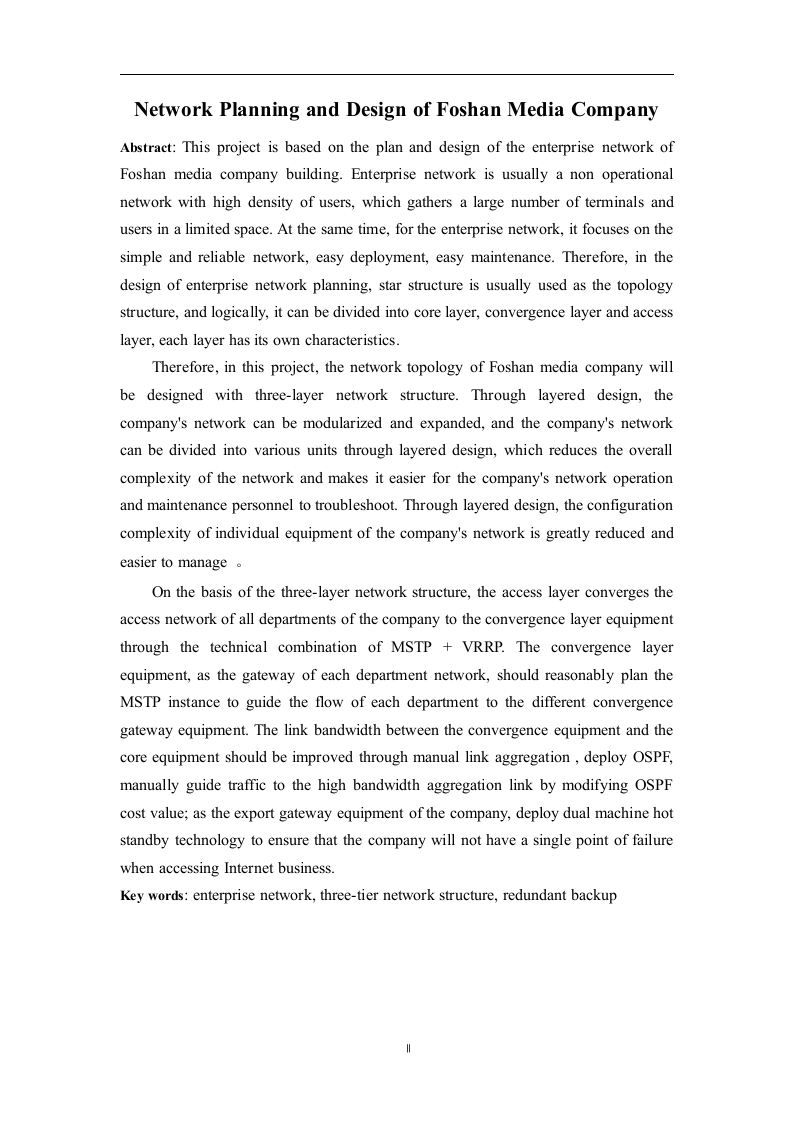

Network Planning and Design of Foshan Media CompanyAbstract:This project is based on the plan and design of the enterprise network ofFoshan media company building.Enterprise network is usually a non operationalnetwork with high density of users,which gathers a large number of terminals andusers in a limited space.At the same time,for the enterprise network,it focuses on thesimple and reliable network,easy deployment,easy maintenance.Therefore,in thedesign of enterprise network planning,star structure is usually used as the topologystructure,and logically,it can be divided into core layer,convergence layer and accesslayer,each layer has its own characteristics.Therefore,in this project,the network topology of Foshan media company willbe designed with three-layer network structure.Through layered design,thecompany's network can be modularized and expanded,and the company's networkcan be divided into various units through layered design,which reduces the overallcomplexity of the network and makes it easier for the company's network operationand maintenance personnel to troubleshoot.Through layered design,the configurationcomplexity of individual equipment of the company's network is greatly reduced andeasier to manageOn the basis of the three-layer network structure,the access layer converges theaccess network of all departments of the company to the convergence layer equipmentthrough the technical combination of MSTP VRRP.The convergence layerequipment,as the gateway of each department network,should reasonably plan theMSTP instance to guide the flow of each department to the different convergencegateway equipment.The link bandwidth between the convergence equipment and thecore equipment should be improved through manual link aggregation,deploy OSPF,manually guide traffic to the high bandwidth aggregation link by modifying OSPFcost value;as the export gateway equipment of the company,deploy dual machine hotstandby technology to ensure that the company will not have a single point of failurewhen accessing Internet business.Key words:enterprise network,three-tier network structure,redundant backup
