110kV商桥柳村架空送电线路设计

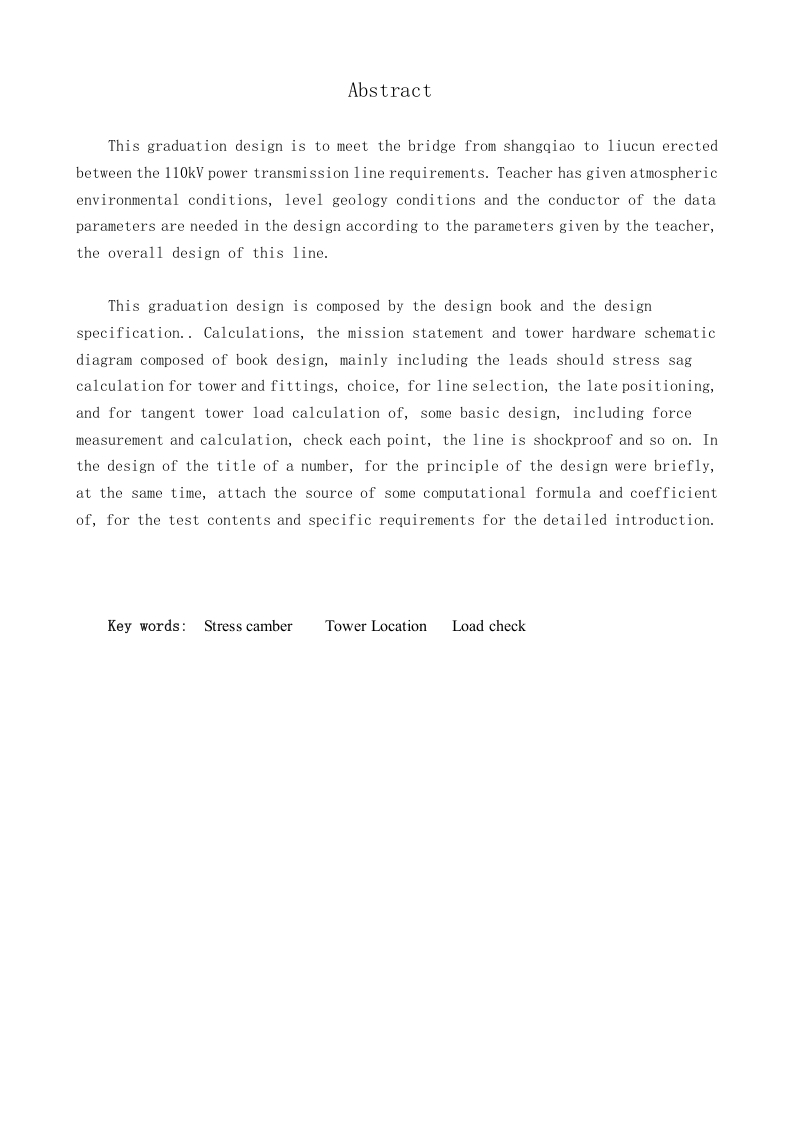

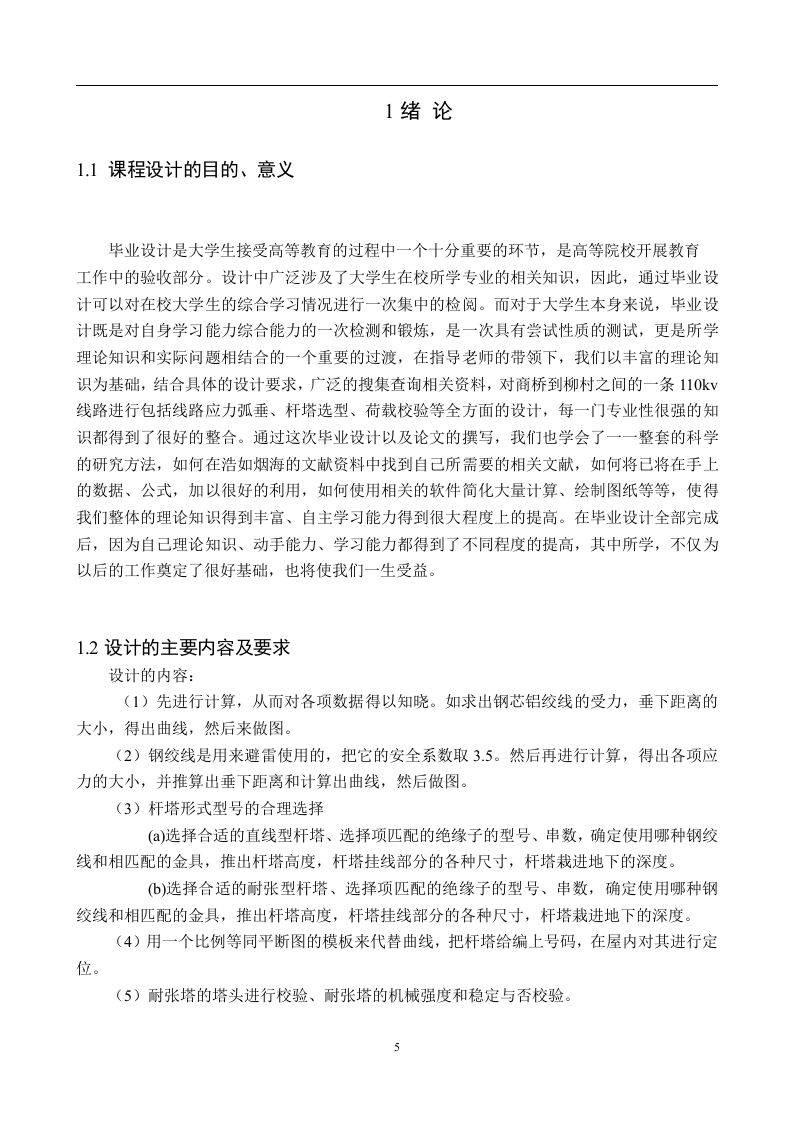

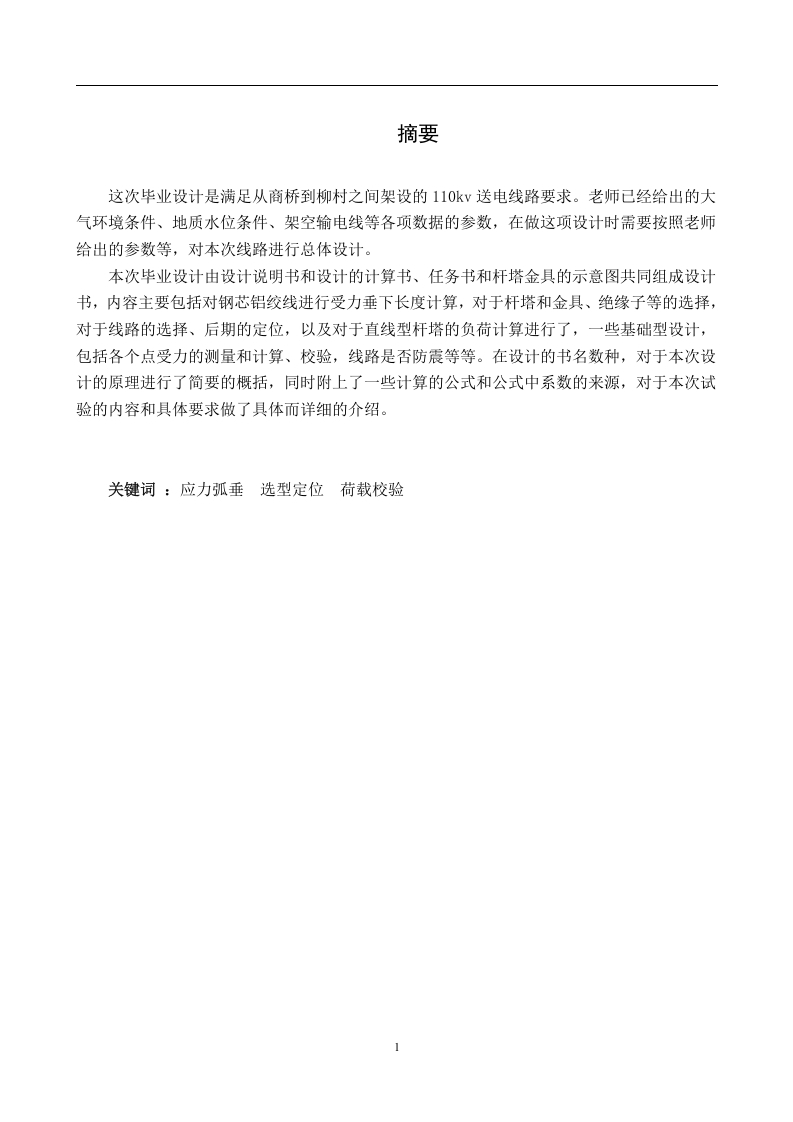

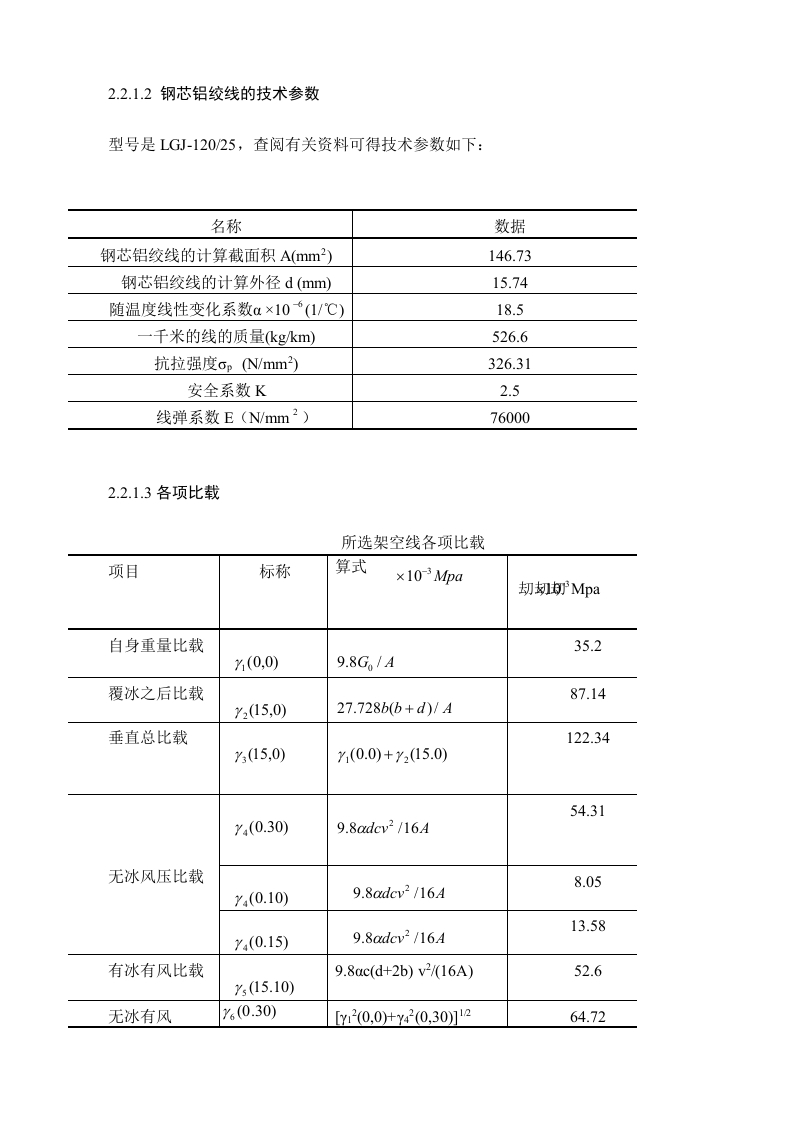

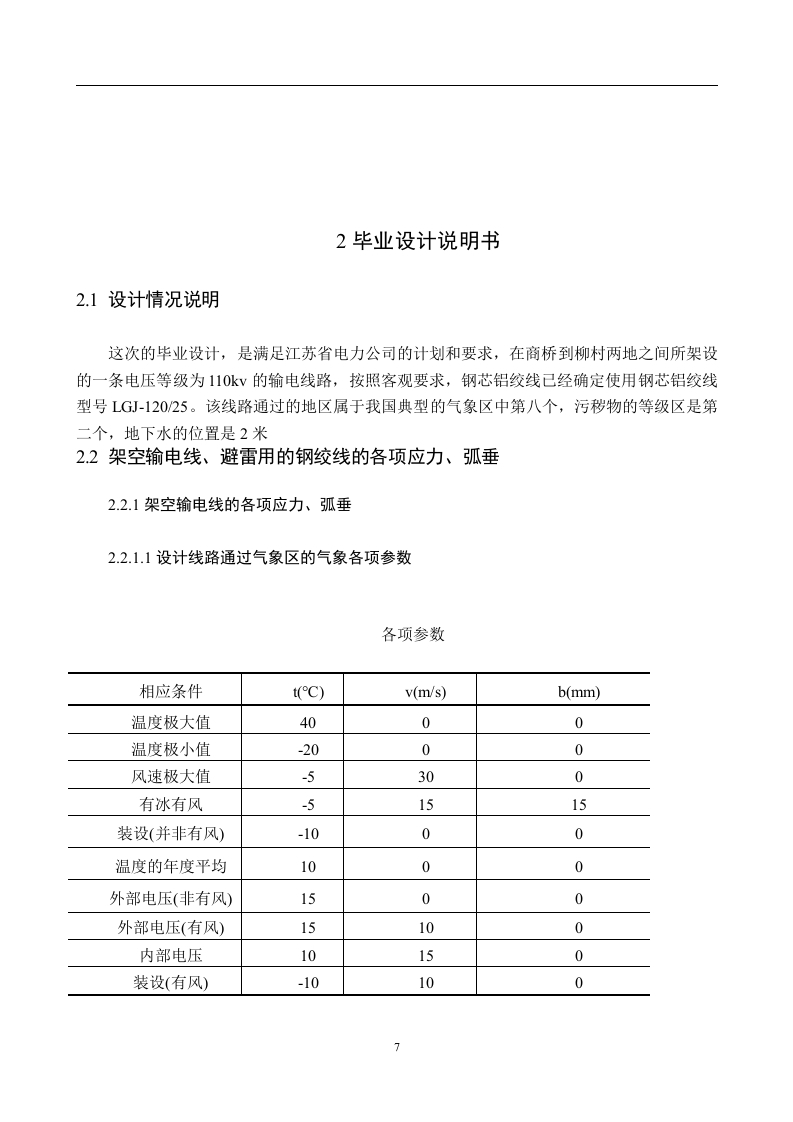

AbstractThis graduation design is to meet the bridge from shangqiao to liucun erectedbetween the 110kV power transmission line requirements.Teacher has given atmosphericenvironmental conditions,level geology conditions and the conductor of the dataparameters are needed in the design according to the parameters given by the teacher,the overall design of this line.This graduation design is composed by the design book and the designspecification..Calculations,the mission statement and tower hardware schematicdiagram composed of book design,mainly including the leads should stress sagcalculation for tower and fittings,choice,for line selection,the late positioning,and for tangent tower load calculation of,some basic design,including forcemeasurement and calculation,check each point,the line is shockproof and so on.Inthe design of the title of a number,for the principle of the design were briefly,at the same time,attach the source of some computational formula and coefficientof,for the test contents and specific requirements for the detailed introduction.Key words:Stress camber Tower Location Load check
