基于PLC的牛奶罐装生产线控制系统设计

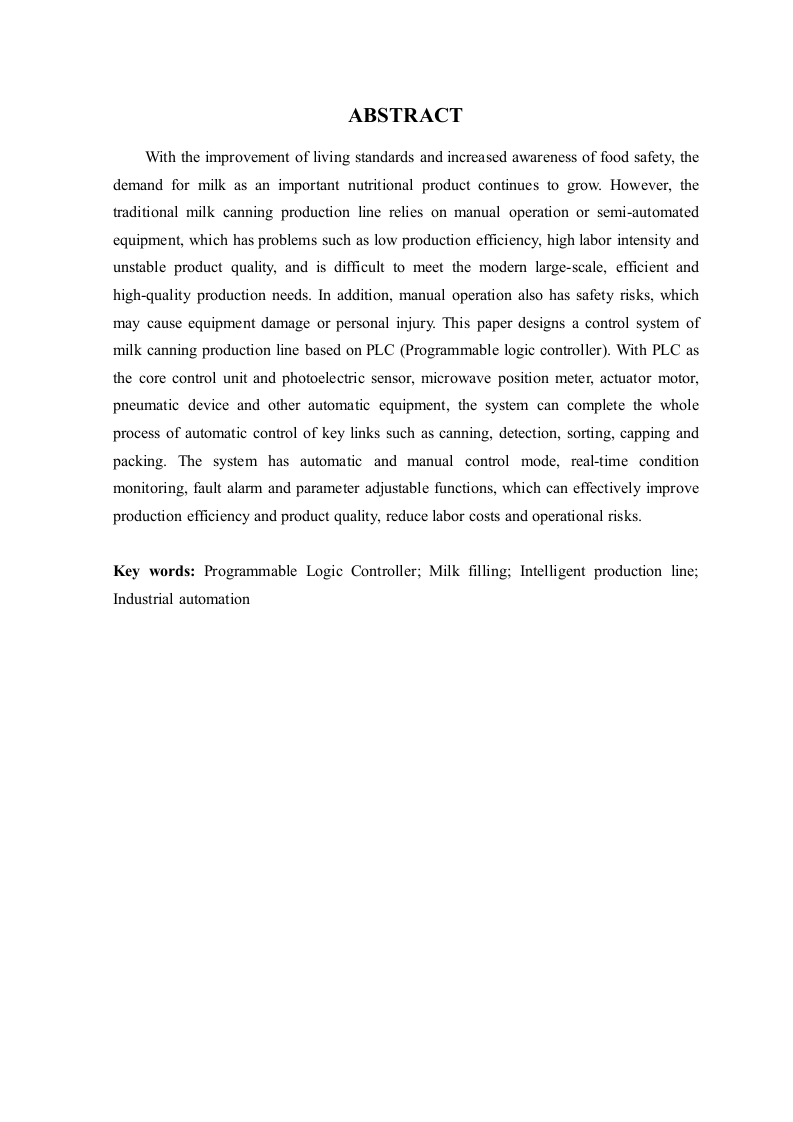

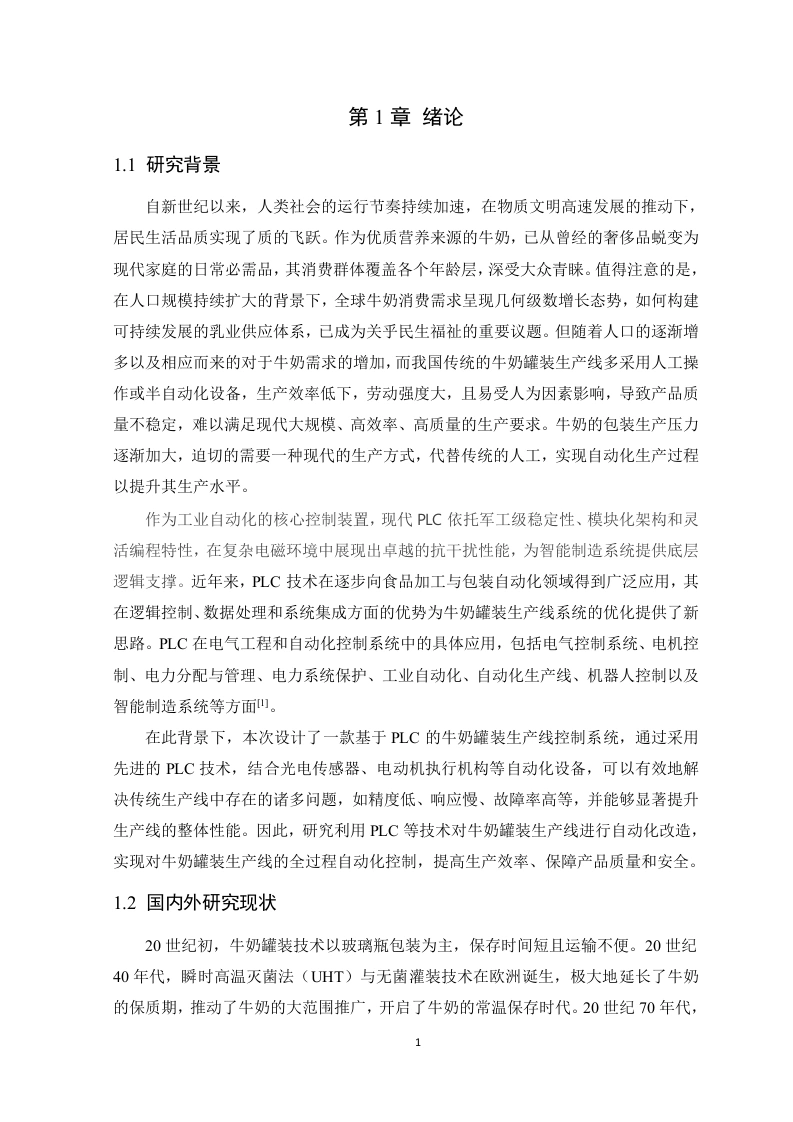

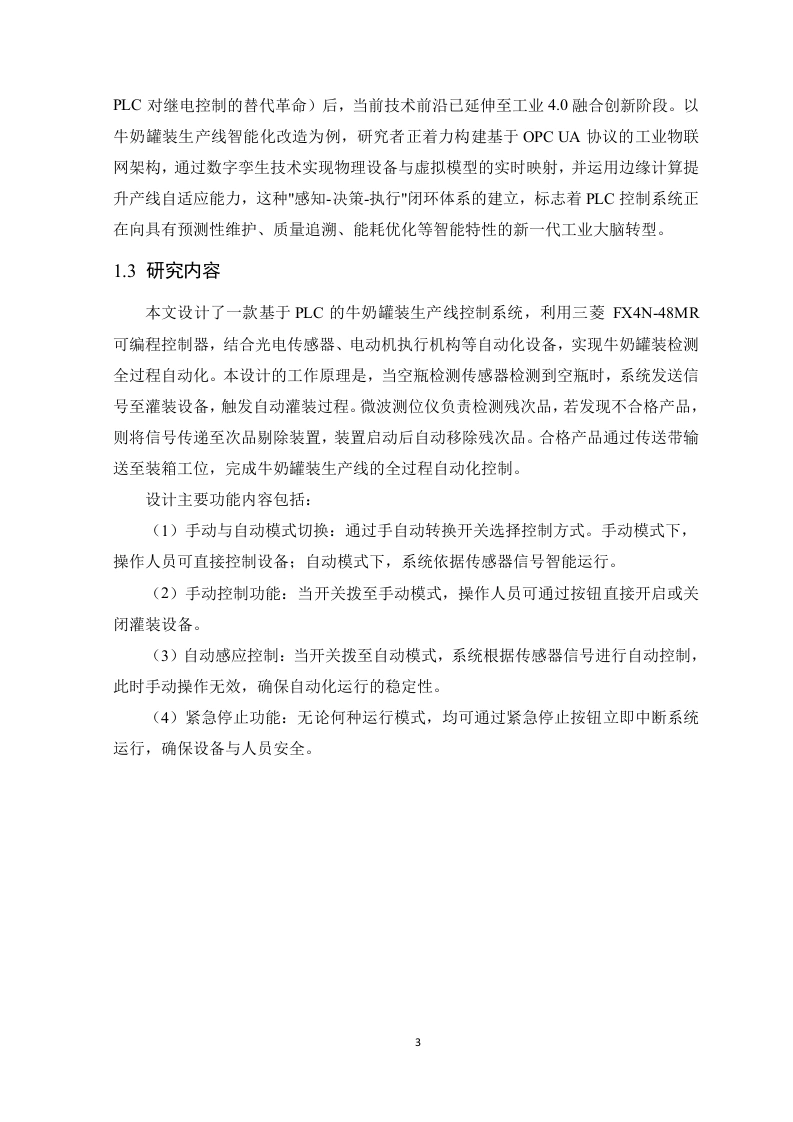

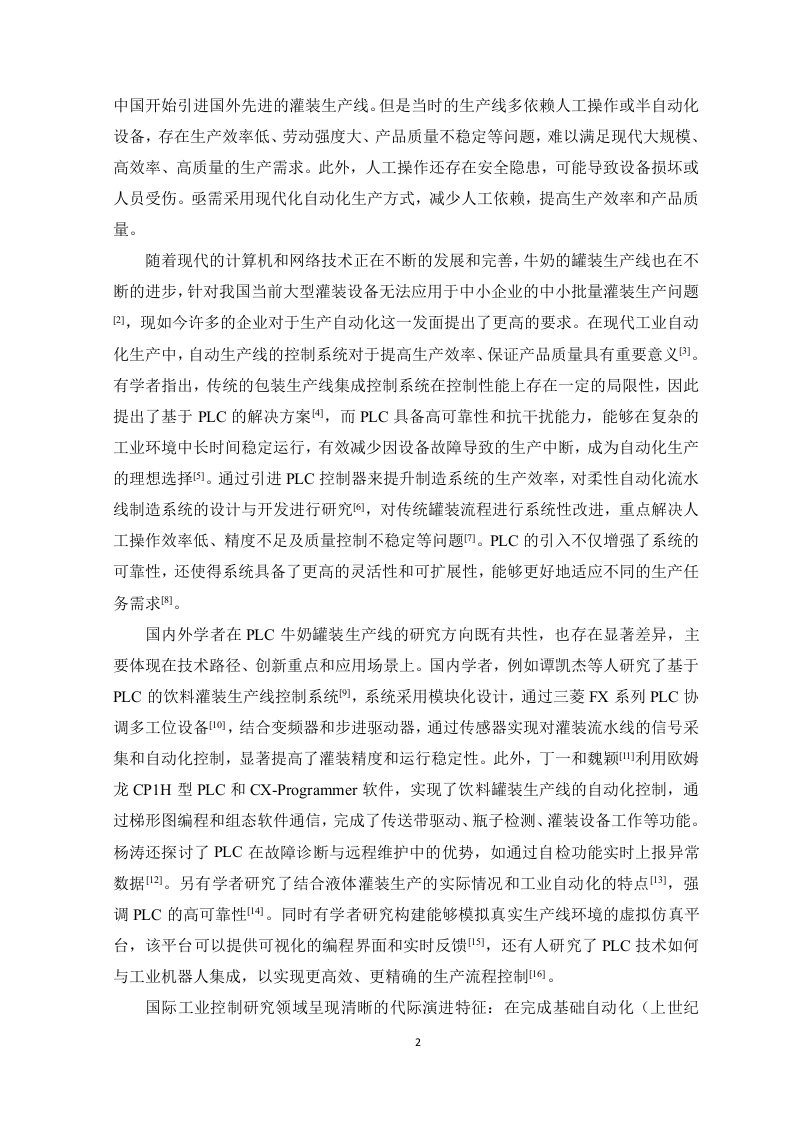

基于PLC的牛奶罐装生产线控制系统设计摘要随着生活水平的提升和食品安全意识的增强，牛奶作为重要营养品的需求持续增长。然而，传统牛奶罐装生产线多依赖人工操作或半自动化设备，存在生产效率低、劳动强度大、产品质量不稳定等问题，难以满足现代大规模、高效率、高质量的生产需求。此外，人工操作还存在安全隐患，可能导致设备损坏或人员受伤。本课题设计了一种基于PLC(可编程逻辑控制器)的牛奶罐装生产线控制系统。该系统以LC为核心控制单元，配合光电传感器、微波测位仪、执行电机、气动装置等自动化设备，完成对罐装、检测、分拣、封盖及装箱等关键环节的全过程自动控制。系统具备自动与手动控制模式、实时状态监测、故障报警与参数可调功能，能够有效提高生产效率与产品质量，降低人力成本与操作风险。关键词：PLC;牛奶罐装：智能化生产线：工业自动化ABSTRACTWith the improvement of living standards and increased awareness of food safety,thedemand for milk as an important nutritional product continues to grow.However,thetraditional milk canning production line relies on manual operation or semi-automatedequipment,which has problems such as low production efficiency,high labor intensity andunstable product quality,and is difficult to meet the modern large-scale,efficient andhigh-quality production needs.In addition,manual operation also has safety risks,whichmay cause equipment damage or personal injury.This paper designs a control system ofmilk canning production line based on PLC (Programmable logic controller).With PLC asthe core control unit and photoelectric sensor,microwave position meter,actuator motor,pneumatic device and other automatic equipment,the system can complete the wholeprocess of automatic control of key links such as canning,detection,sorting,capping andpacking.The system has automatic and manual control mode,real-time conditionmonitoring,fault alarm and parameter adjustable functions,which can effectively improveproduction efficiency and product quality,reduce labor costs and operational risks.Key words:Programmable Logic Controller;Milk filling;Intelligent production line;Industrial automation目录第1章绪论1.1研究背景1.2国内外研究现状1.3研究内容第2章系统设计方案，42.1系统设计的基本步骤2.2系统的控制要求2.3小结5第3章系统硬件设计.63.1系统总体选型63.1.1PLC选型..83.1.2光电传感器o3.1.3微波传感器3.1.4传送带123.1.5报警提示灯….133.1.6灌输设备133.2I/O地址分配..143.3系统线路图......15第4章系统软件设计…164.1编译平台简介164.2组态王仿真器164.3设计原理…174.4程序设计.17第5章系统测试与仿真模拟215.1系统测试…215.2仿真情况…22结论…25参考文献…26致谢28
