起重设备无线遥控系统设计

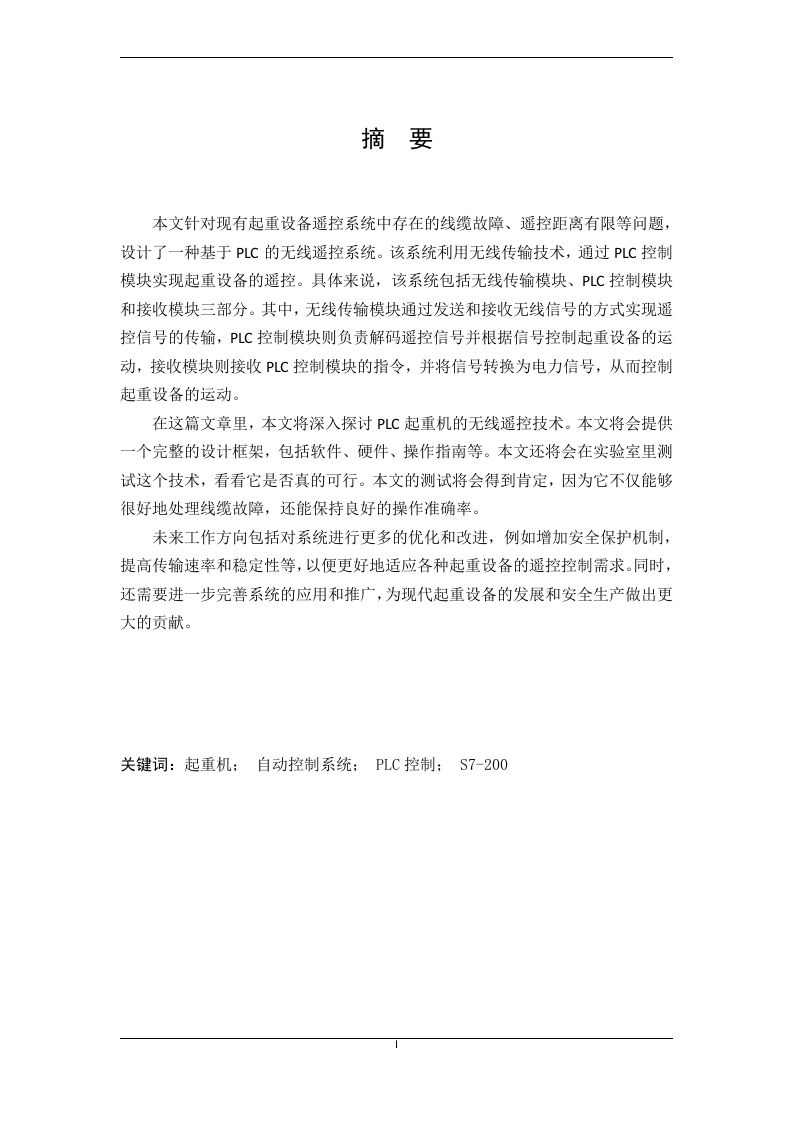

摘要本文针对现有起重设备遥控系统中存在的线缆故障、遥控距离有限等问题，设计了一种基于PLC的无线遥控系统。该系统利用无线传输技术，通过PLC控制模块实现起重设备的遥控。具体来说，该系统包括无线传输模块、PLC控制模块和接收模块三部分。其中，无线传输模块通过发送和接收无线信号的方式实现遥控信号的传输，PLC控制模块则负责解码遥控信号并根据信号控制起重设备的运动，接收模块则接收PLC控制模块的指令，并将信号转换为电力信号，从而控制起重设备的运动。在这篇文章里，本文将深入探讨PLC起重机的无线遥控技术。本文将会提供一个完整的设计框架，包括软件、硬件、操作指南等。本文还将会在实验室里测试这个技术，看看它是否真的可行。本文的测试将会得到肯定，因为它不仅能够很好地处理线缆故障，还能保持良好的操作准确率。未来工作方向包括对系统进行更多的优化和改进，例如增加安全保护机制，提高传输速率和稳定性等，以便更好地适应各种起重设备的遥控控制需求。同时，还需要进一步完善系统的应用和推广，为现代起重设备的发展和安全生产做出更大的贡献。关键词：起重机：自动控制系统：PLC控制：S7-200ABSTRACTA wireless remote control system based on PLC is designed in this article totackle issues such as cable faults and the limited distance of remote control in existinglifting equipment remote control systems.This system utilizes wireless transmissiontechnology and achieves remote control of lifting equipment through PLC controlmodules.The wireless transmission module is the most prominent of the threecomponents of the system:the PLC control module,and the reception module.Thismodule is responsible for transmitting remote control signals by sending andreceiving them.Additionally,the PLC control module is responsible for decoding theremote control signals and controlling the lifting equipment's movement based on thesignals.The receiving module receives instructions from the PLC control module andconverts the signals into electrical signals to control the movement of the liftingequipment.An in-depth overview of the design plan,hardware circuitry,and programming ofthe wireless remote control system for PLC lifting equipment is presented in thisarticle.Experiments have been conducted to verify the system's feasibility andstability.The results demonstrate that it can effectively address cable faults andremote control distance issues,as well as its high accuracy and dependability,whichcan be applied to practical applications..The future work direction includes further optimization and improvement of thesystem,such as adding security protection mechanisms,improving transmission rateand stability,in order to better adapt to the remote control requirements of variouslifting equipment.At the same time,it is necessary to further improve the applicationand promotion of the system,making greater contributions to the development andsafety production of modern lifting equipment.Keywords:Crane:Automatic control system;PLC control:S7-200目录摘要.第1章绪论。.11.1课题研究意义.11.2国内外现状研究.11.3本文的研究内容.….21.4本章小结….3第2章方案介绍…。42.1总体控制方案…42.2交流变频器的控制方式选择.…2.3三种方向的比较与选择52.3.1可编程控制器(PLC)对比单片机控制系统.52.3.2可编程控制器(PLC)对比继电器控制系统.52.4本章小结….6第3章硬件设计3.1电路设计…。73.1.1主电路设计..73.1.2PLc1/0点接线图..73.1.3变频器接线图.103.2硬件选型….113.2.1PLC选型.113.2.2空气开关选型.113.2.3按钮开关选型..123.2.4电源指示灯选型…123.2.6中间继电器选型.143.2.7变频器选型..143.2.8电动机….153.2.9无线模块选型.163.310分配表.…17
