基于LabView的电学虚拟实验平台设计

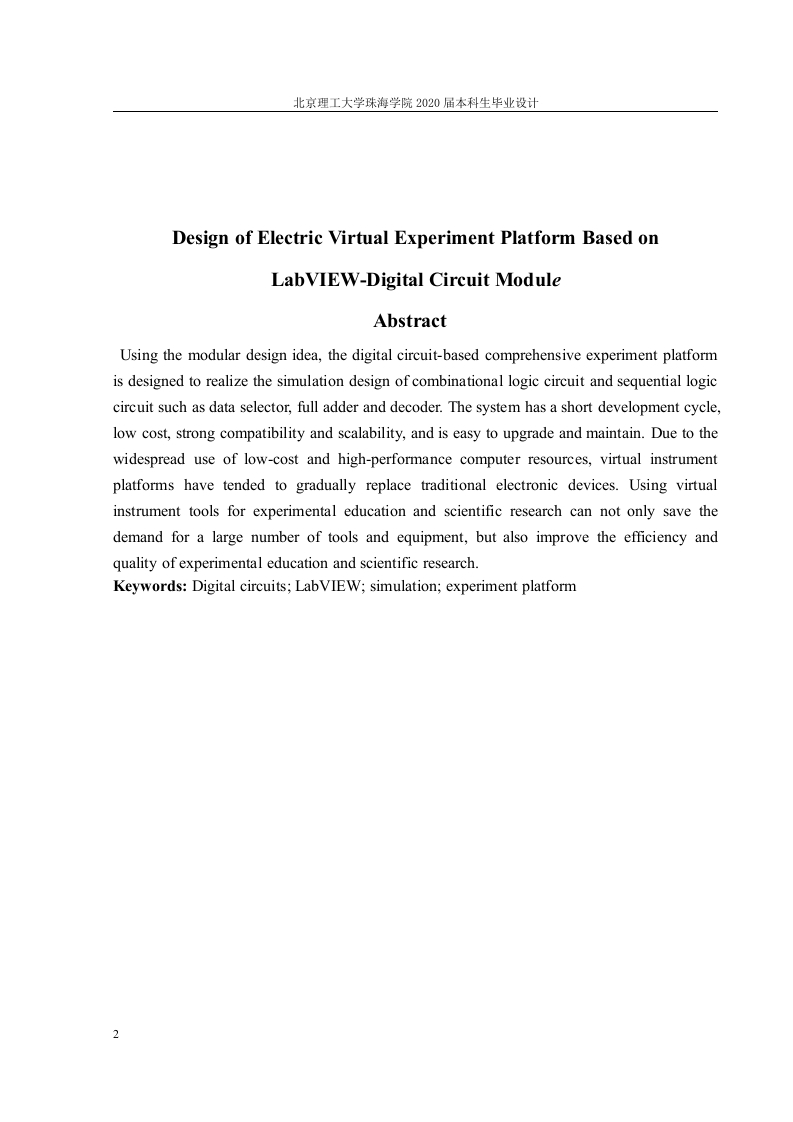

北京理工大学珠海学院2020届本科生毕业设计Design of Electric Virtual Experiment Platform Based onLabVIEW-Digital Circuit ModuleAbstractUsing the modular design idea,the digital circuit-based comprehensive experiment platformis designed to realize the simulation design of combinational logic circuit and sequential logiccircuit such as data selector,full adder and decoder.The system has a short development cycle,low cost,strong compatibility and scalability,and is easy to upgrade and maintain.Due to thewidespread use of low-cost and high-performance computer resources,virtual instrumentplatforms have tended to gradually replace traditional electronic devices.Using virtualinstrument tools for experimental education and scientific research can not only save thedemand for a large number of tools and equipment,but also improve the efficiency andquality of experimental education and scientific research.Keywords:Digital circuits;LabVIEW;simulation;experiment platform2
